Manual/Electronic Control

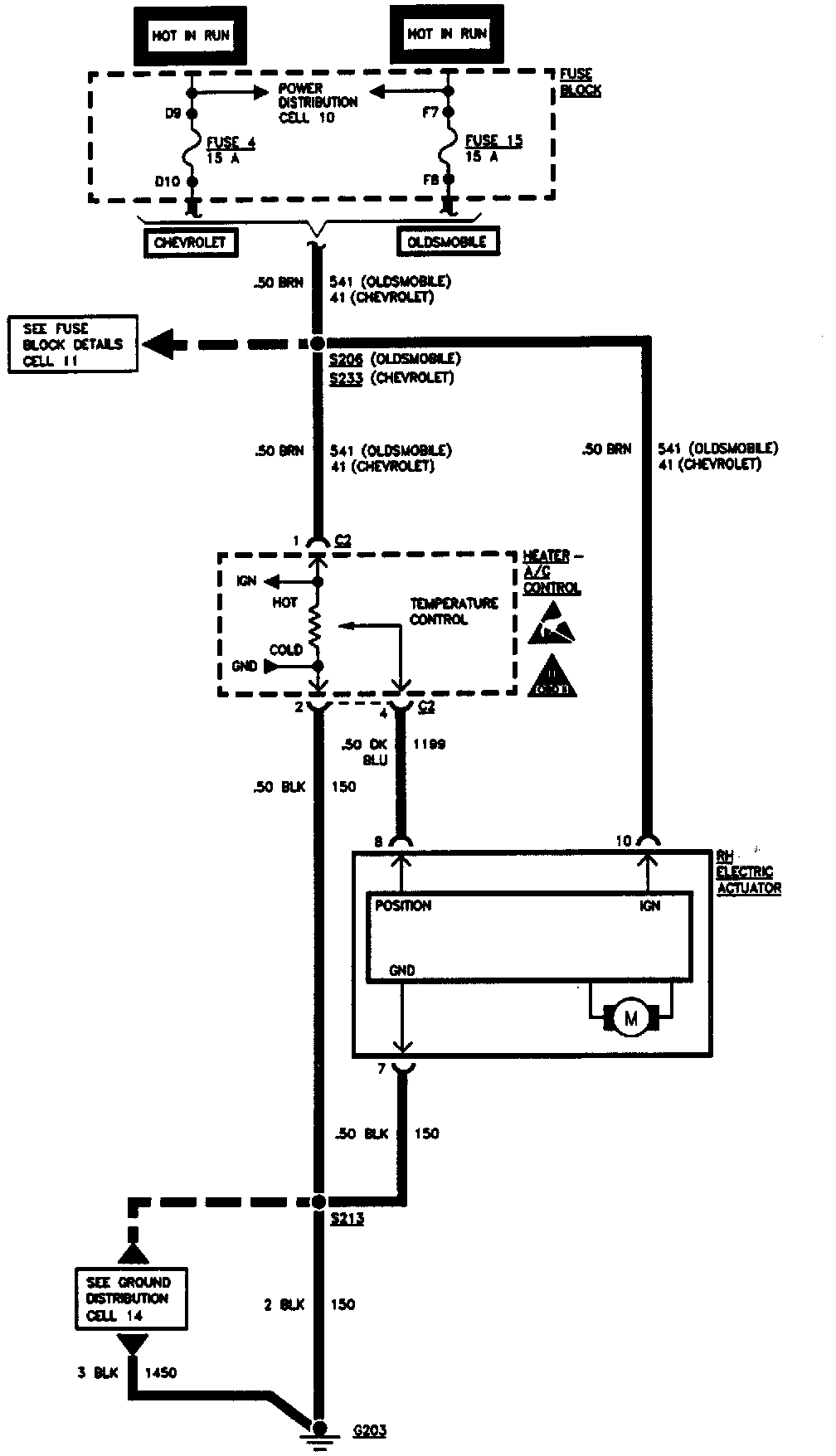

HVAC Air Delivery And Temperature Control: Chevy (C60) & Olds (C67) Temperature Controls (Part 1 Of 2):

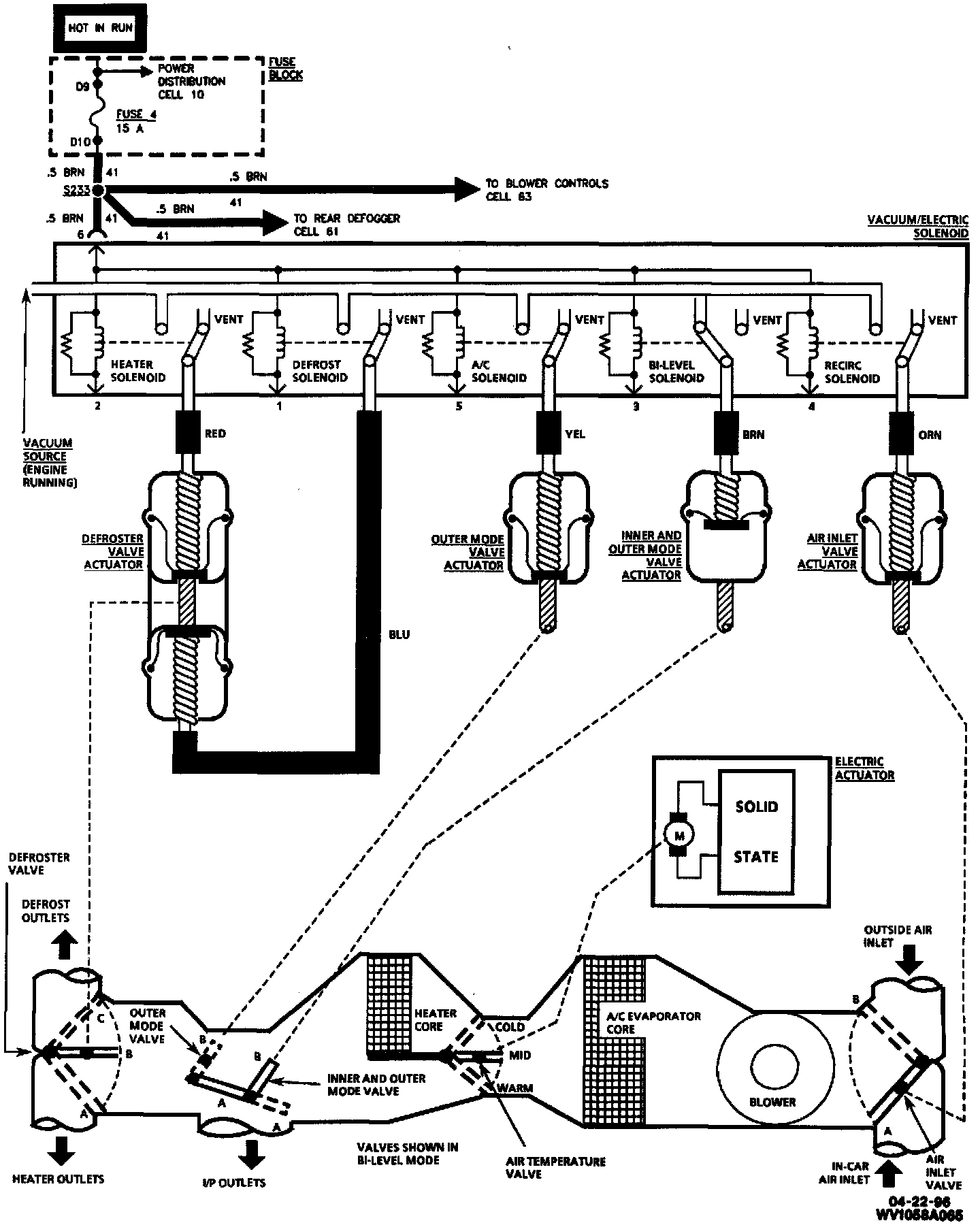

HVAC Air Delivery And Temperature Control: Chevy (C60) & Olds (C67) Temperature Controls (Part 2 Of 2):
