Home
>>
Oldsmobile
>>
1997
>>
Cutlass Supreme V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
>>
Left Outside Mirror
Left Outside Mirror

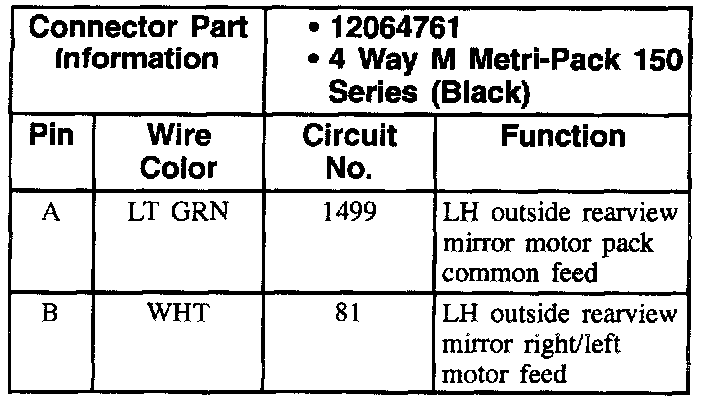

Outside Remote Control Rearview Mirror, LH (Part 1 Of 2):

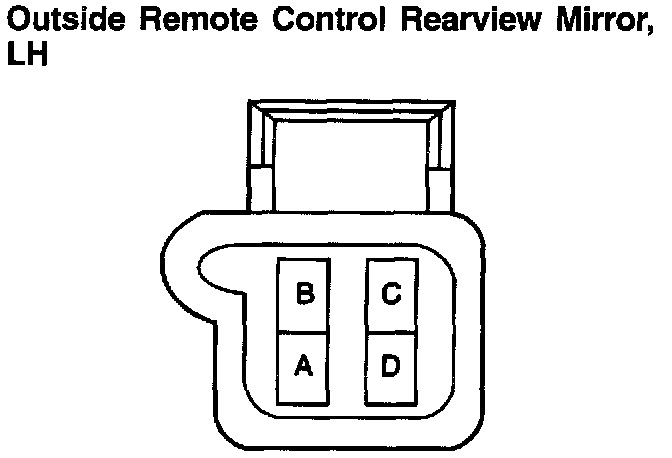

Outside Remote Control Rearview Mirror, LH:

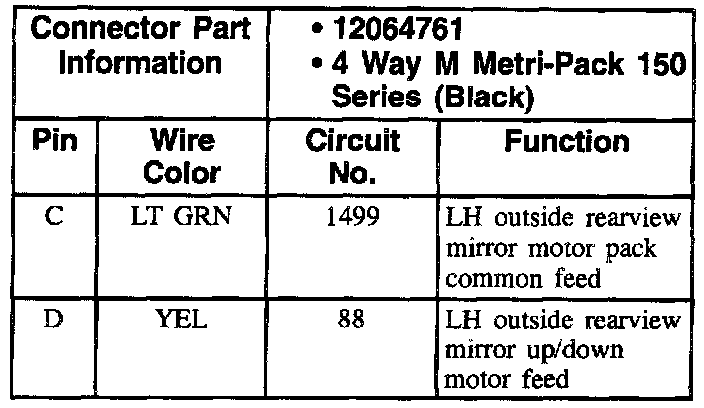

Outside Remote Control Rearview Mirror, LH (Part 2 Of 2):
