Cruise Control Release Switch and Stoplamp Switch Adjustment

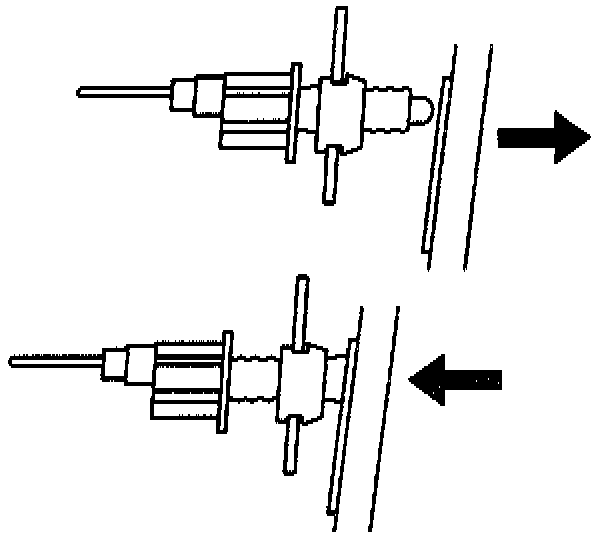

Cruise Control Release Switch And Stoplamp Switch Adjustment (Typical):

The cruise control release switch and the stoplamp switch are adjusted together. Incorrect adjustment could cause the cruise control system to not work properly.

ADJUST
1. Remove LH I/P sound insulator panel.
2. Depress brake pedal fully.
3. Push switch(es) into retainer(s) until fully seated.
4. Pull brake pedal fully rearward against pedal stop until audible "clicks" can no longer be heard.
Measure
^ The following brake pedal travel distances can be used to validate proper cruise control release switch and stoplamp switch adjustment.
- Cruise control release switch and Stop lamp switch contacts must be open at 3.5 to 12.5 mm (1/8 to 1/2 inch) of brake pedal travel, measured at the centerline of the brake pedal pad. Nominal actuation of the stoplamp switch contacts is about 4.5 mm (3/16 inch) after cruise control switch contacts close.
5. Install LH I/P sound insulator panel.
