Backing Plate: Service and Repair

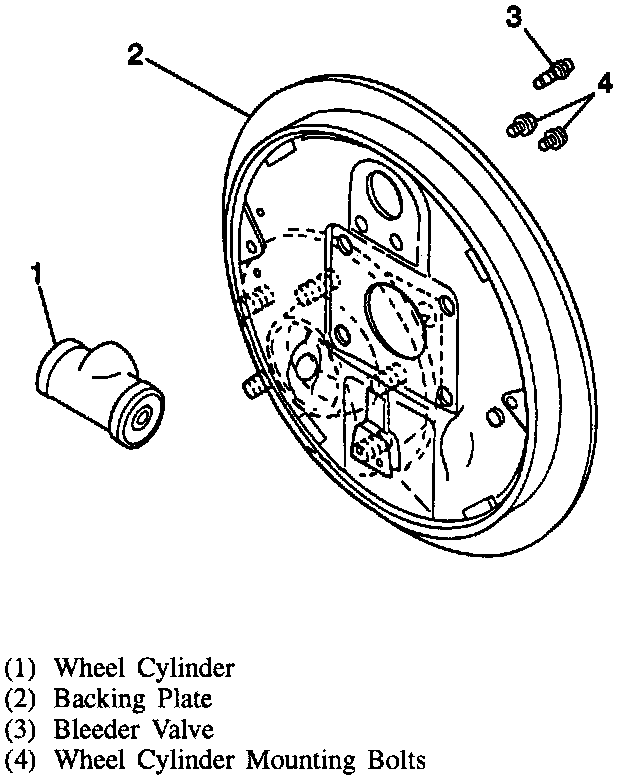

Wheel Cylinder Attachment:

REMOVE OR DISCONNECT
1. Wheel cylinder.
2. Parking brake cable from backing plate.
3. Rear wheel hub.
4. Backing plate.

INSTALL OR CONNECT
1. Backing plate.
2. Rear, wheel hub.
3. Parking brake cable to backing plate.
4. Wheel cylinder.
5. Bleed the brake hydraulic system.

NOTE: Adjust brakes and parking brake.
