Keyless Entry Receiver: Diagrams

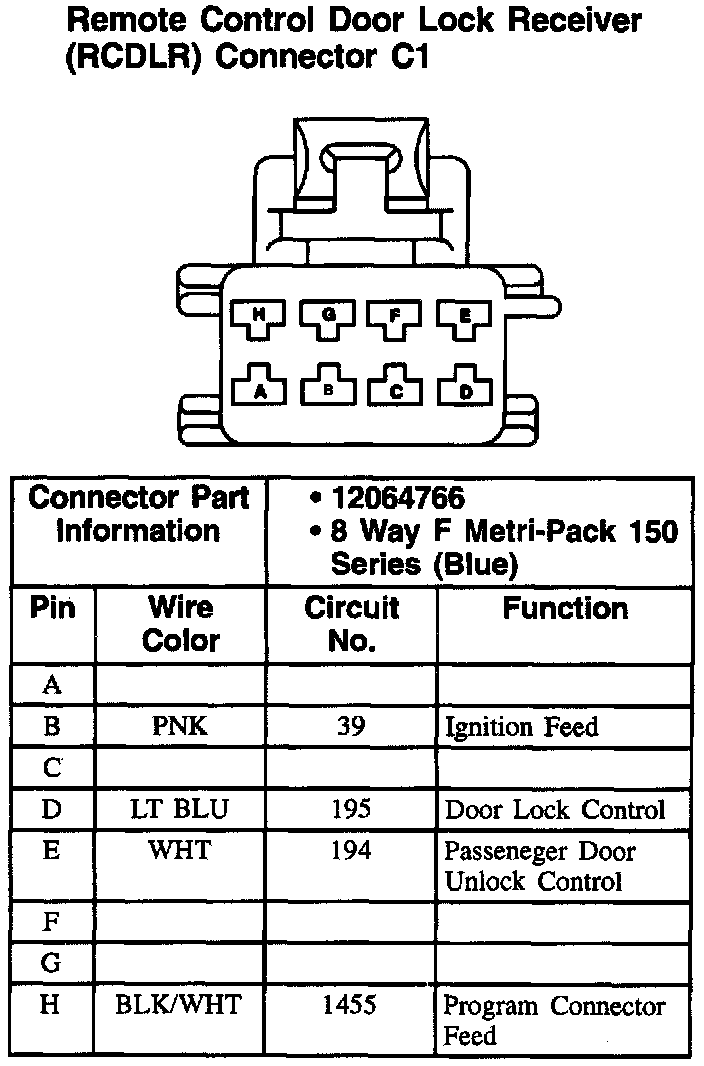

Remote Control Door Lock Receiver: C1:

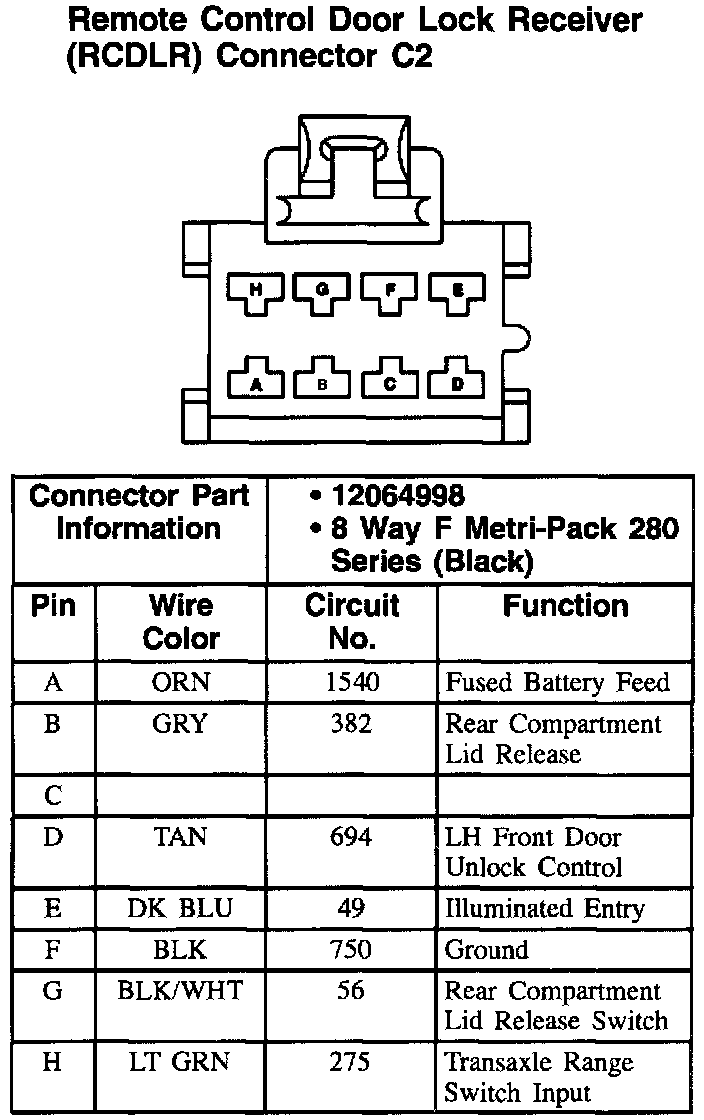

Remote Control Door Lock Receiver: C2:
