Console Replacement

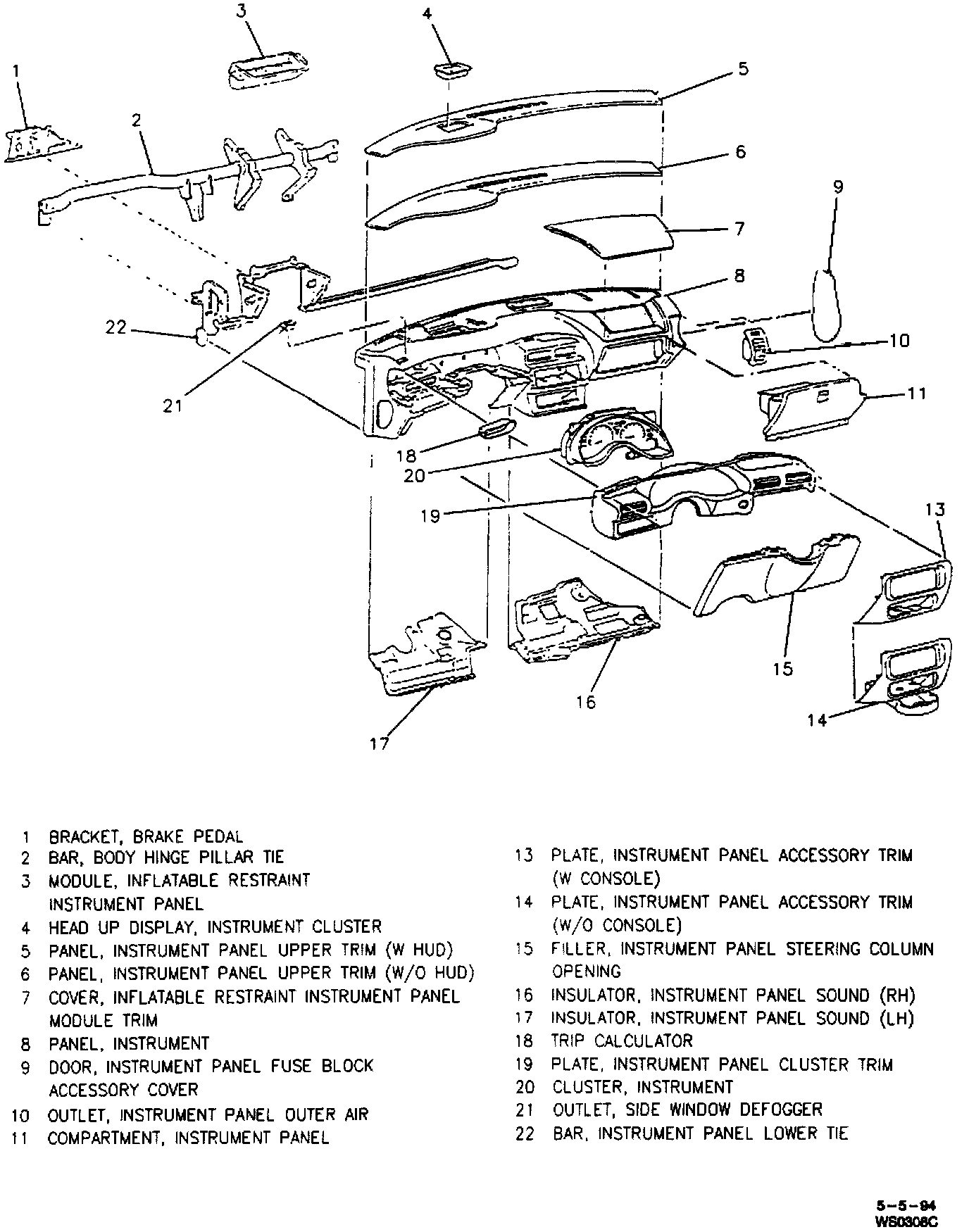

Instrument Panel (Oldsmobile):

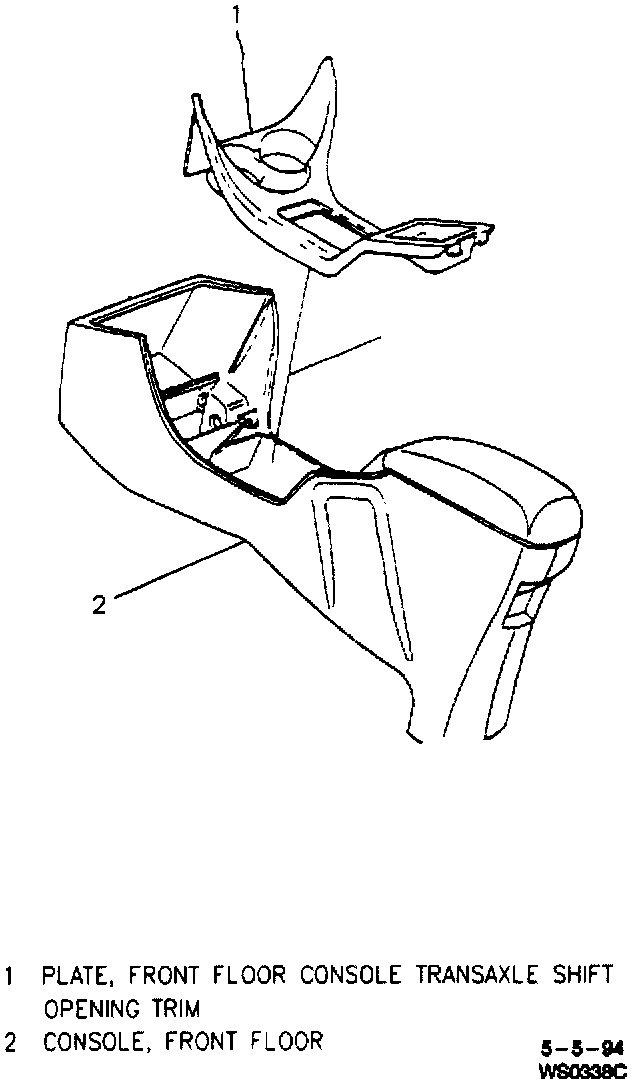

Front Floor Console (Oldsmobile):

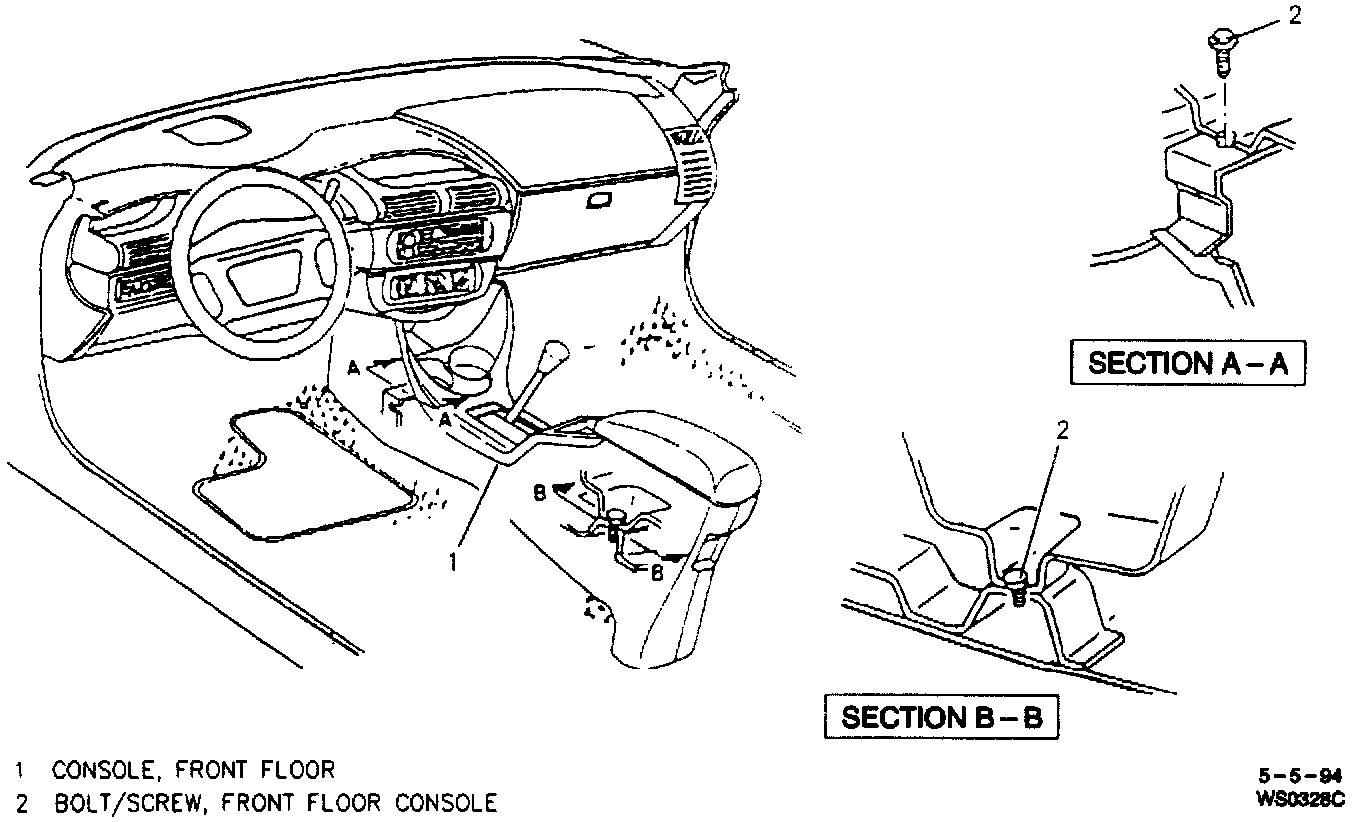

Front Floor Console Mounting (Oldsmobile):

Remove or Disconnect
1. Transaxle shift handle.
2. Screws from rear compartment in front floor console.
3. Front floor console transaxle shift opening trim by prying with small flat-bladed tool. Pry gently at two rear tabs with small flat-bladed tool.
4. Front floor Console armrest.
5. Front floor console wiring.
6. Electrical connectors.
7. Bolts/screws from front and rear of front floor console.
8. Front floor console from vehicle.

Install or Connect

NOTICE: Refer to Service Precautions.

1. Front floor console to vehicle.
2. Bolts/screws to front and rear of front floor console.

Tighten
^ Bolts/screws to 5 N.m (44 lb. in.).

3. Electrical connectors.
4. Front floor console wiring.
5. Front floor console armrest.
6. Front floor console transaxle shift opening trim.
^ Snap down to secure, rear tabs last.
7. Screws in rear of front floor console storage compartment.
8. Transaxle shift handle.
