Trunk / Liftgate Switch: Service and Repair

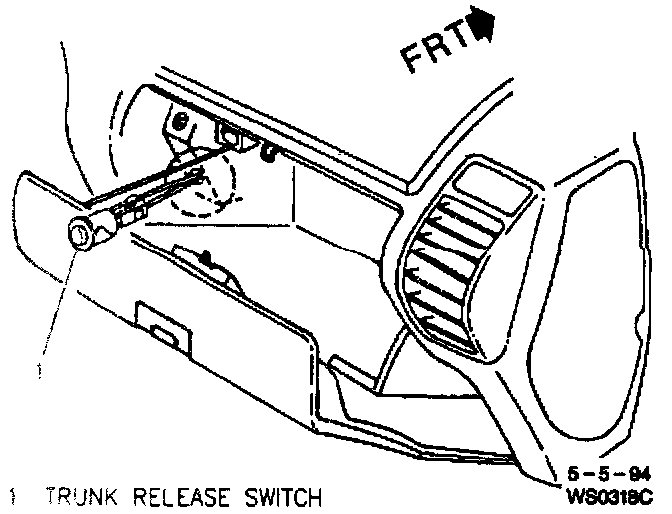

Rear Compartment Lid Release Switch (Chevrolet):

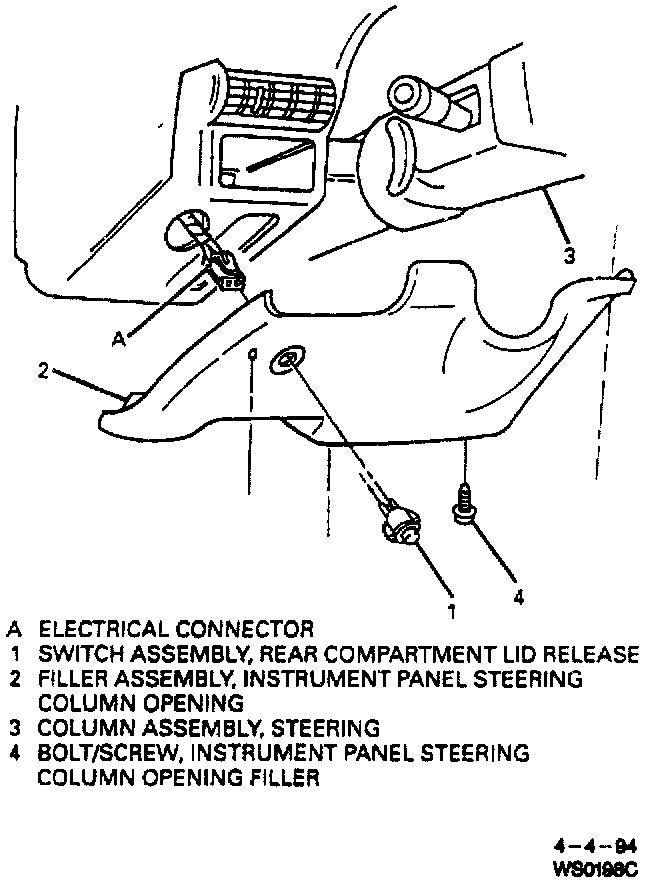

Rear Compartment Lid Release Switch (Oldsmobile):





Remove or Disconnect
1. Rear compartment lid release switch by prying carefully using a small flat-bladed tool.
2. Electrical connector.

Install or Connect
1. Electrical connector.
2. Rear compartment lid release switch by pushing into place.
