Symptom Table

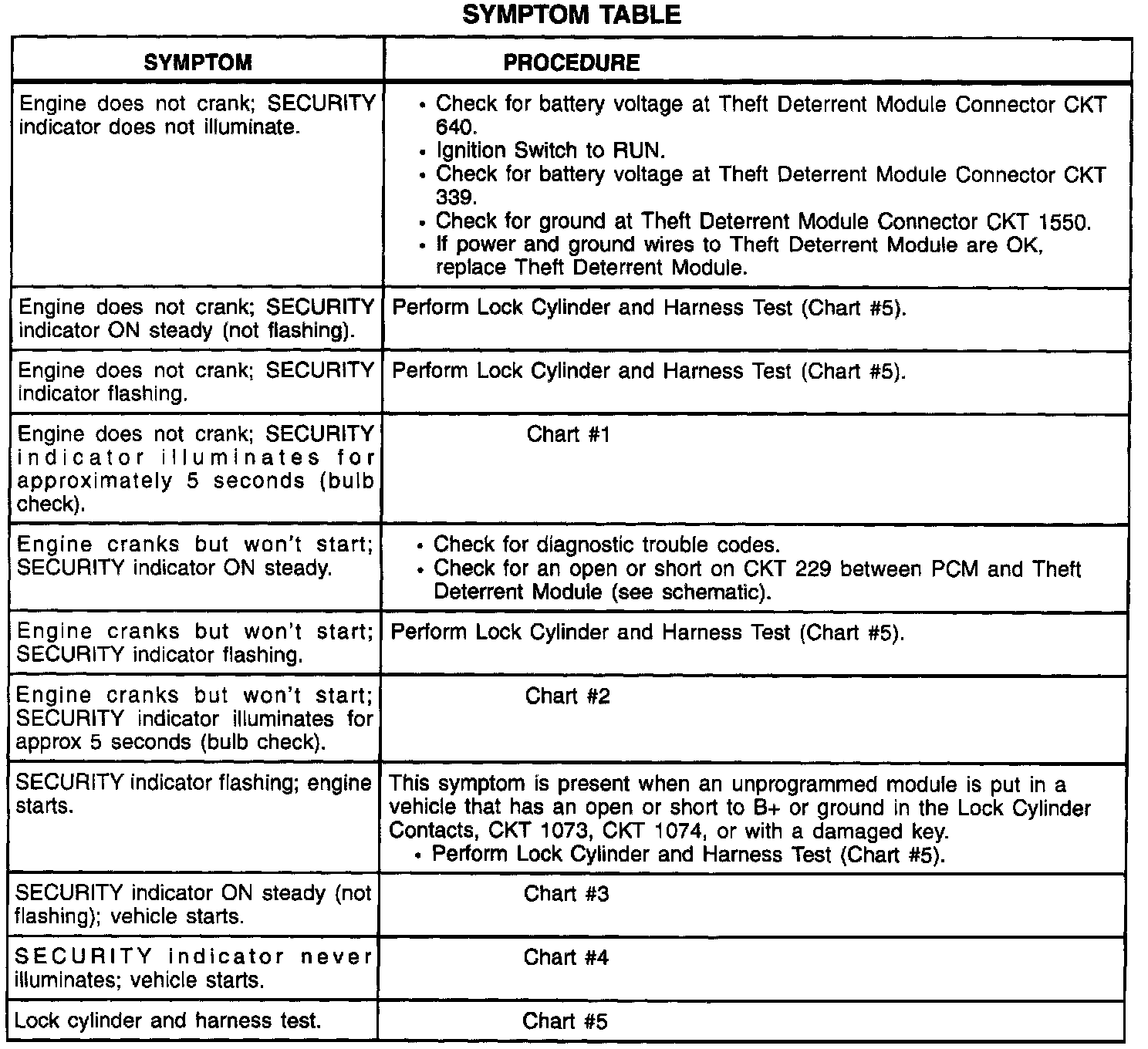

Symptom Table:




IMPORTANT: For SECURITY Indicator: attach a Tech 1 scan tool to the Data Link Connector (DLC) and monitor PASS-KEY (R) II System Indicator (active-ON; inactive-OFF). If Tech 1 is unavailable, attach a test light to the DLC between terminal "8" and B+.

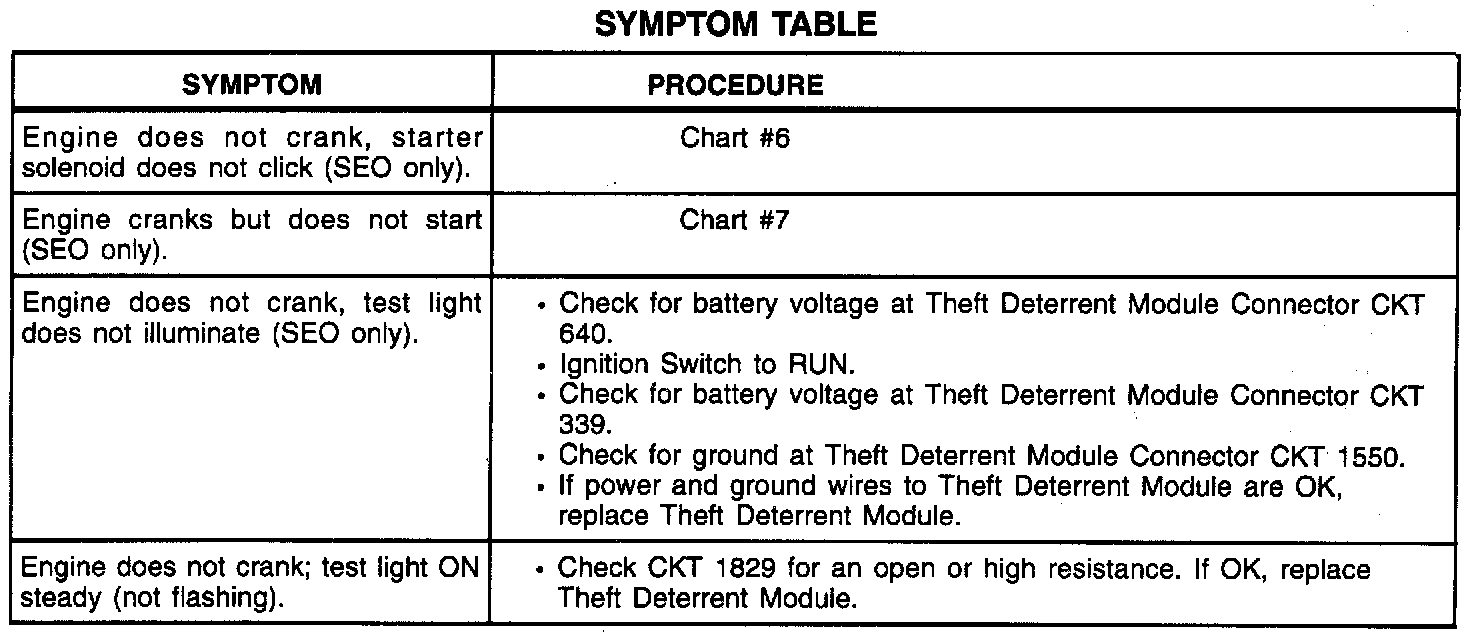

SEO

Symptom Table (SEO):
