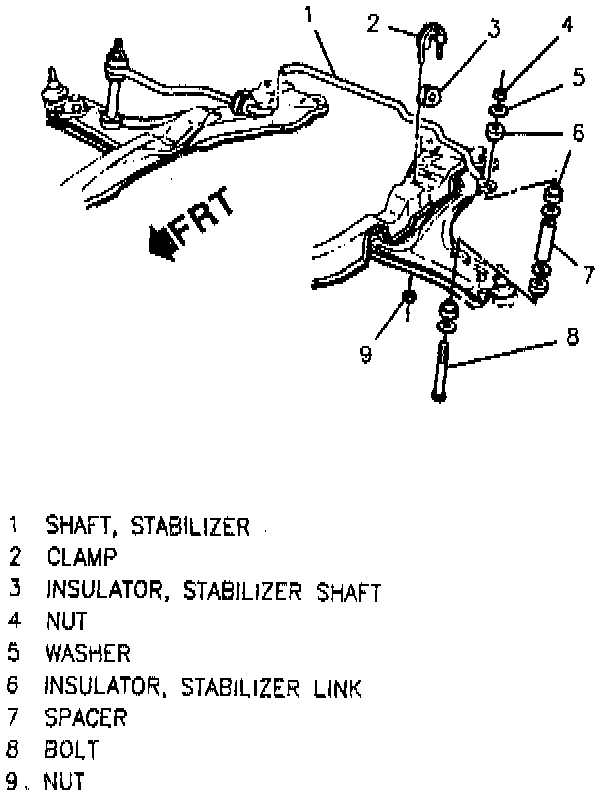

Stabilizer Link: Service and Repair

REMOVAL
Remove or disconnect the following:
1. Nut attaching stabilizer link to stabilizer shaft.
2. Bolt, insulators, spacer, and washers system.

INSTALLATION
Install or connect the following:
1. Bolt, insulators, spacer, and washers system.
2. Nut attaching stabilizer link to stabilizer shaft.
^ Tighten the nut to 30 Nm (22 ft. lbs.).
