Unit Repair

^ Tools Required:
- J 29792- Front Control Arm Bushing Service Set
- J 39971- Lower Control Arm Vertical Bushing Service Set
- Or Equivalents

REMOVAL
Remove or disconnect the following:
1. Lower control arm.

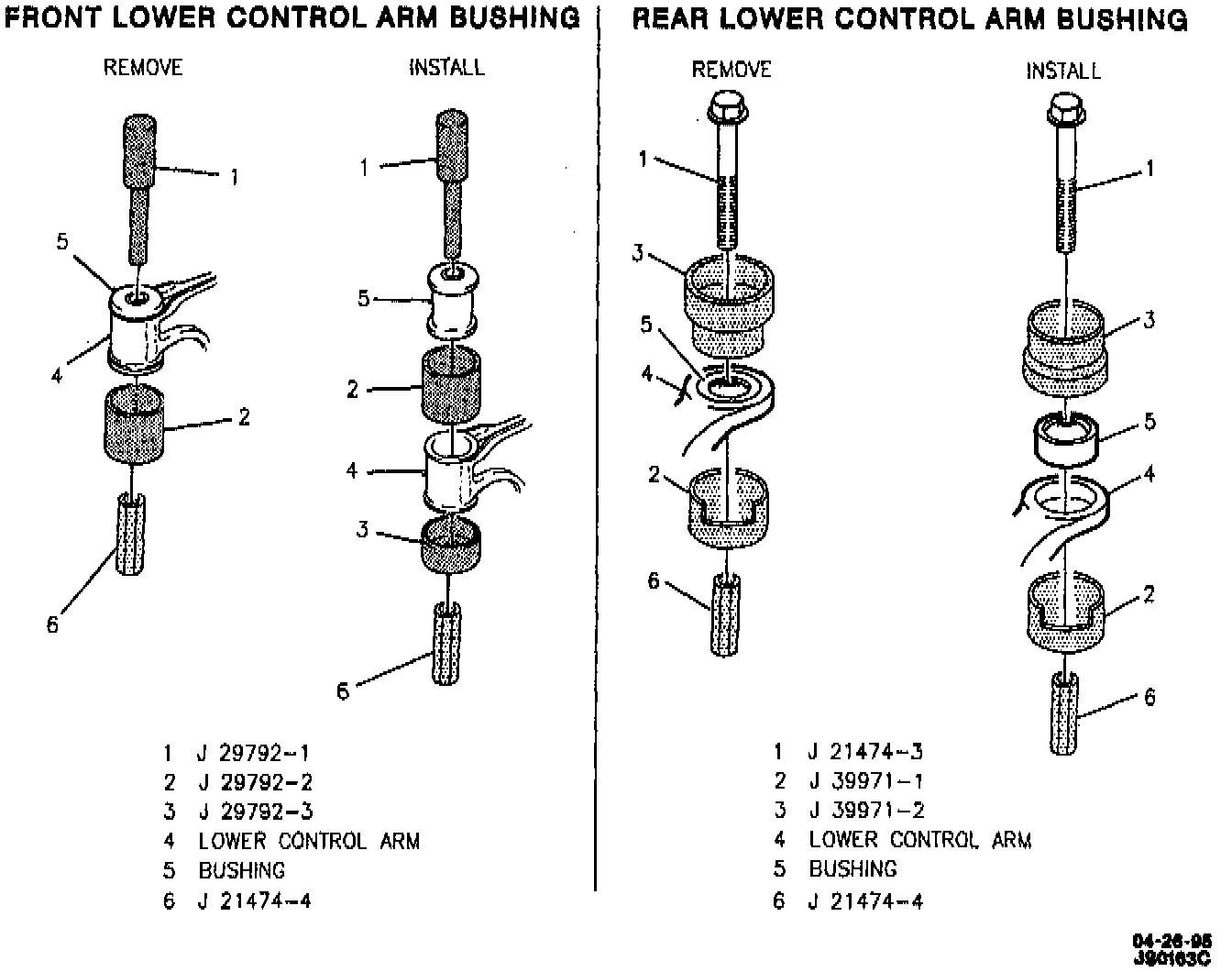

^ Install bushing removal tools.
^ Coat threads of tool J 29792 with an extreme pressure lubricant.
2. Lower control arm bushings.

INSTALLATION
Install or connect the following:
1. Bushing installation tools.
2. Lower control arm bushings.
^ To ease installation, coat outer casing of new bushing with a lubricant.
3. Lower control arm.
