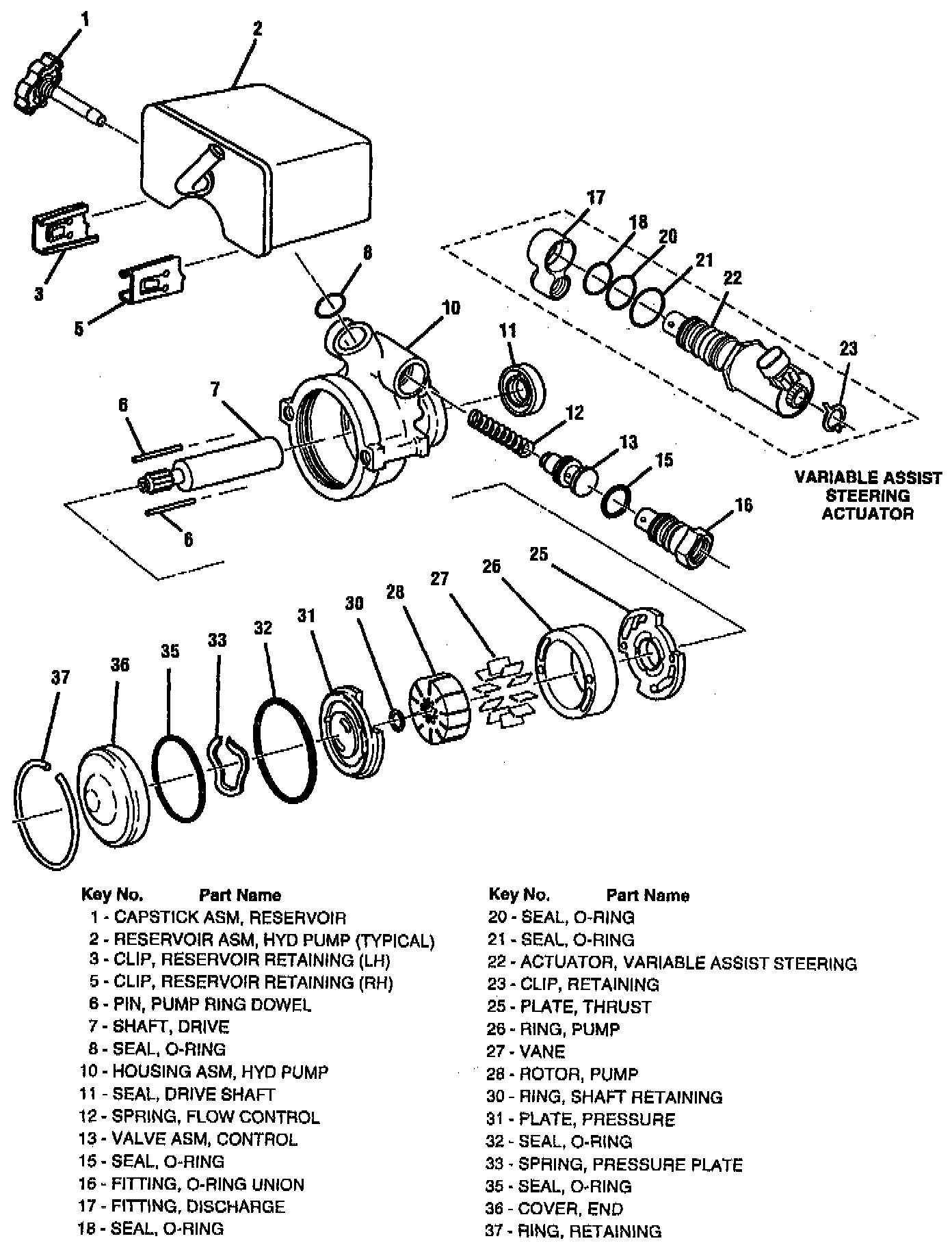

Reservoir Assembly

REMOVAL
Remove or disconnect the following:
1. Pump assembly from vehicle, if necessary for access.
2. Retaining clips (3) and (5) from reservoir assembly (2) and housing (10).
3. Reservoir (2) from housing (10).
4. O-ring seal (8) from reservoir (2).

INSTALLATION
Install or connect the following:
1. Lubricate new O-ring (8) with power steering fluid.
^ O-ring seal (8) to reservoir (2).
2. Reservoir assembly (2) to housing (10).
3. Retaining clips (3) and (5) to reservoir (2) and housing (10).
4. Pump assembly to vehicle, if removed.
