Direct Drive CB Series

REMOVAL
Remove or disconnect the following:
1. Pump assembly from vehicle, if necessary for access.

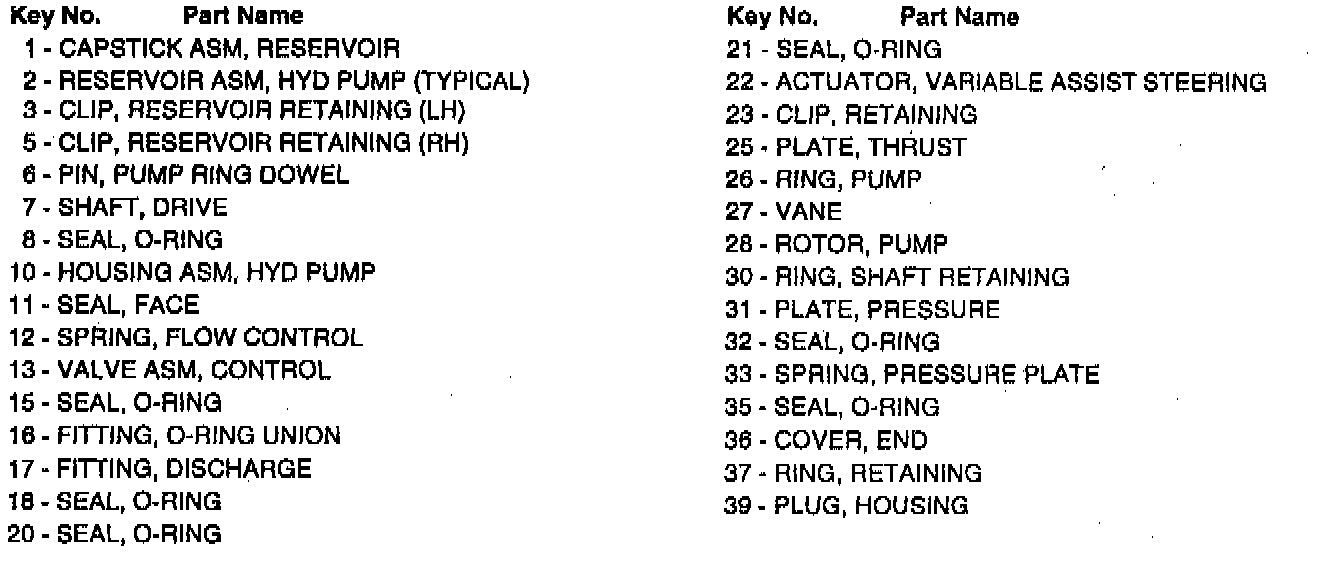

2. Housing plug (39) and 0-ring(15).
3. Flow control spring (12).
4. Control valve (13).

INSTALLATION
Install or connect the following:
1. Control valve (13).
2. Flow control spring (12).
3. O-ring (15) and housing plug (39).
^ Tighten the housing plug (39) to 75 Nm (55 ft. lbs.).
4. Pump assembly to vehicle, if removed.
