Unit Repair

^ Tools Required:

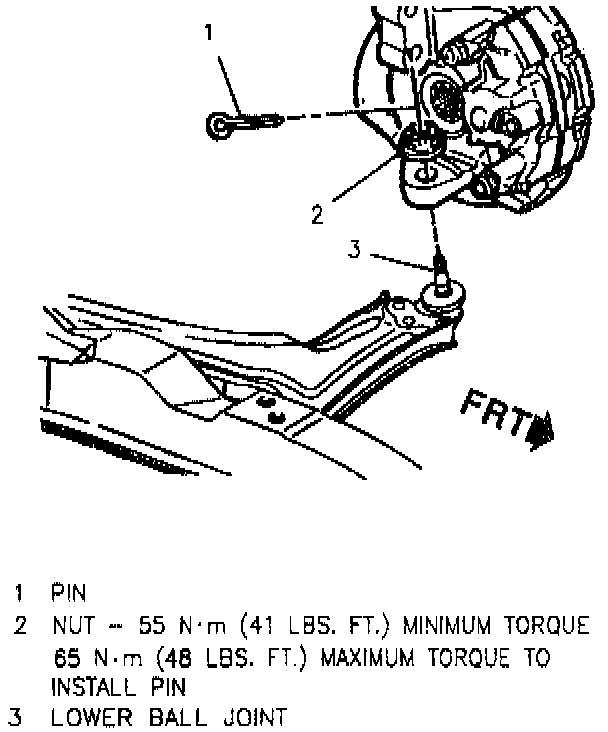

- J 9330 Ball Joint Separator
- J 28733-A Front Hub Spindle Remover
- Or Equivalents

REMOVAL
Remove or disconnect the following:

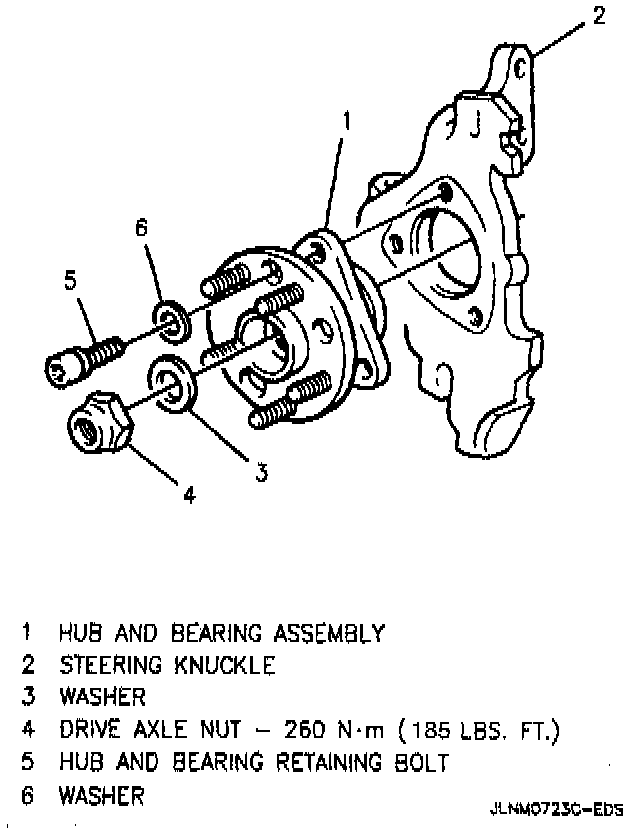

1. Hub and bearing assembly.

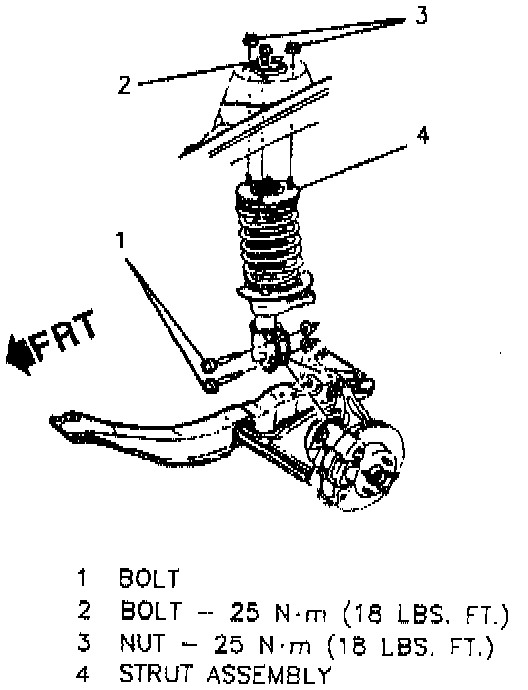

2. Bolts attaching steering knuckle to strut.

INSTALLATION
Install or connect the following:
1. Steering knuckle into strut and install steering knuckle-to-strut assembly bolts.
Tighten steering knuckle-to-strut assembly nuts to 180 Nm (133 ft. lbs.).
2. Hub and bearing assembly onto knuckle and install hub and bearing assembly bolts.
3. Check front wheel alignment.
