Passenger Air Bag Module

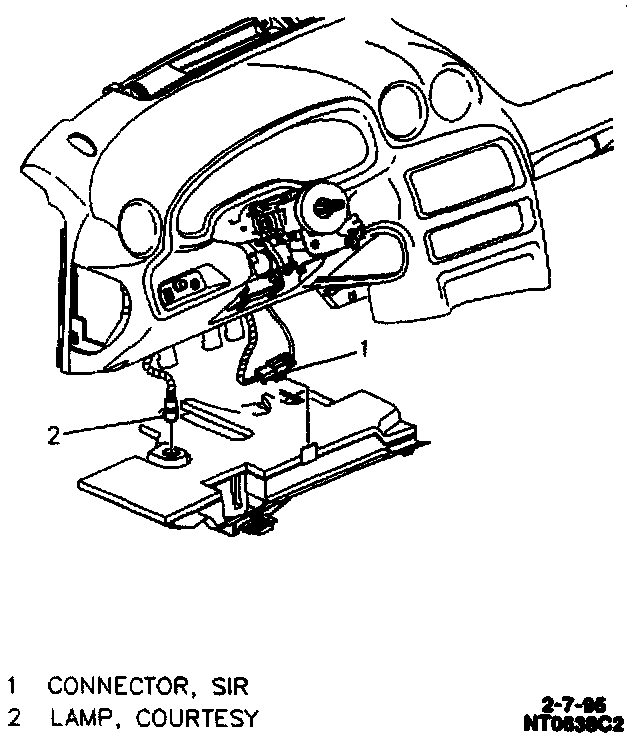

SIR Connector (Left Sound Insulator):

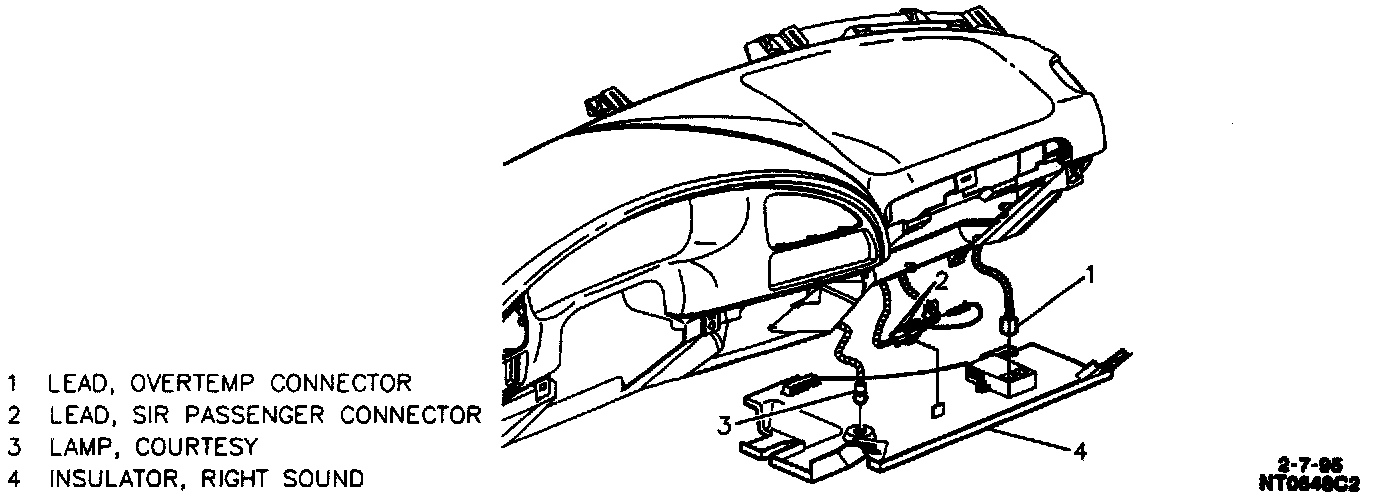

SIR Connector (Right Side Insulator):



RH Top Of I/P:

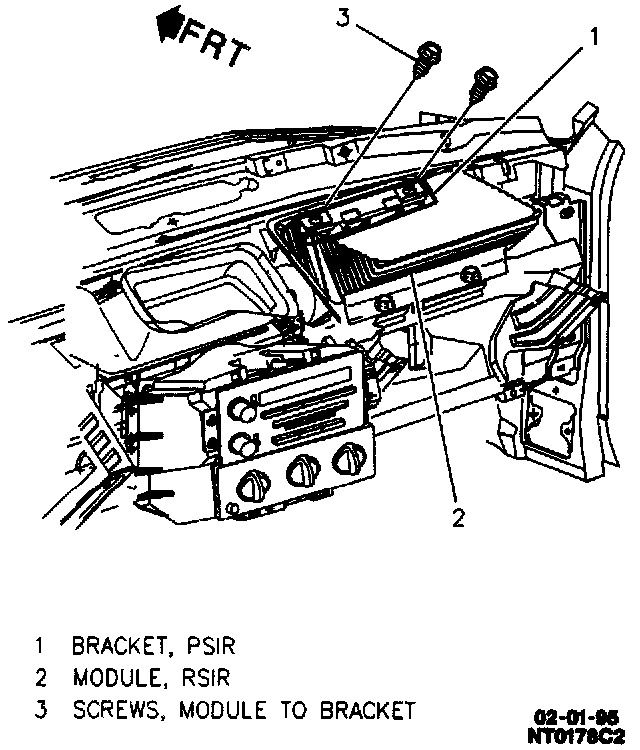

Passenger SIR Module To I/P:

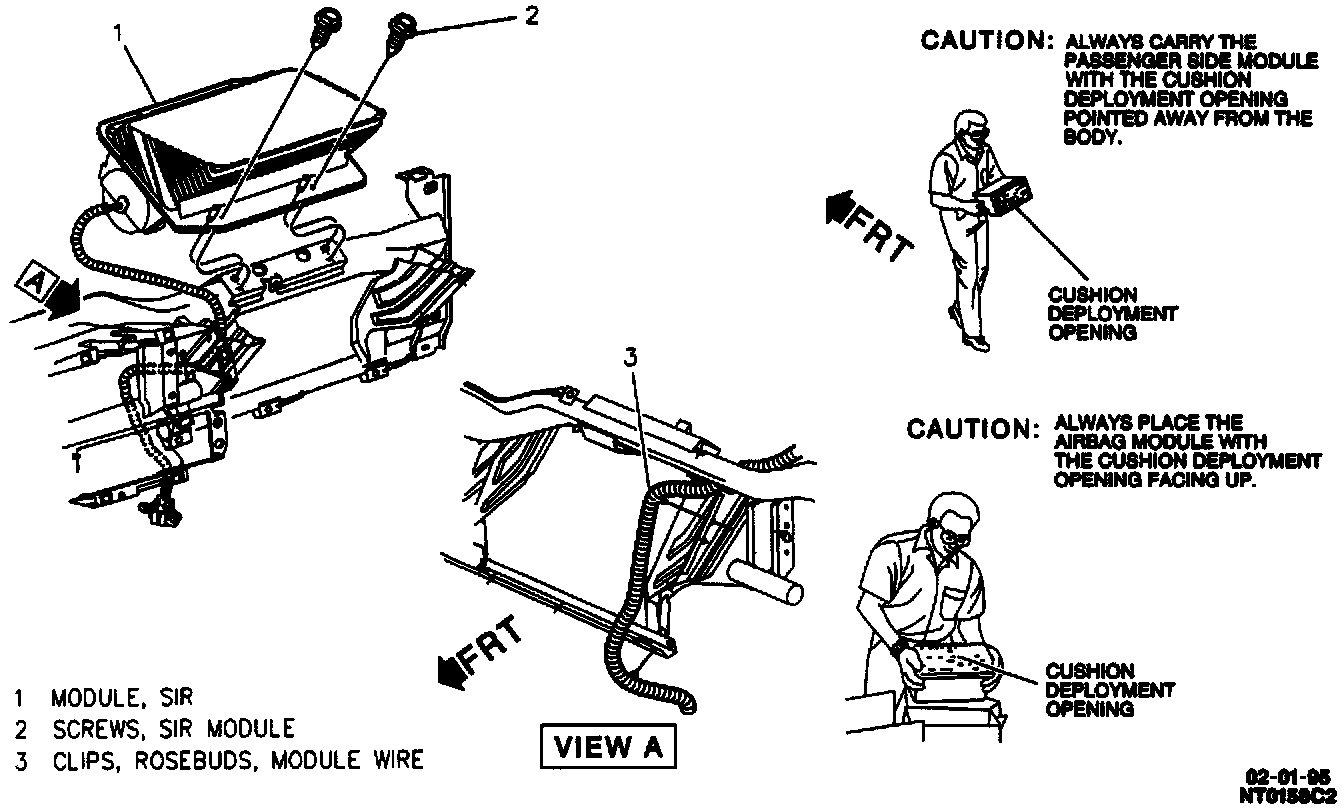

Passenger SIR Module Wiring:

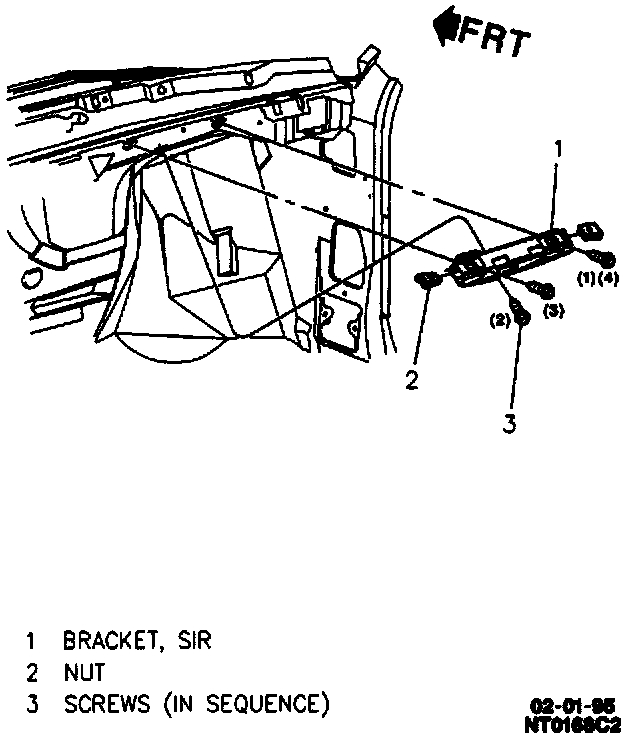

Passenger SIR Module Bracket:
