Fog/Driving Lamp Relay: Service and Repair

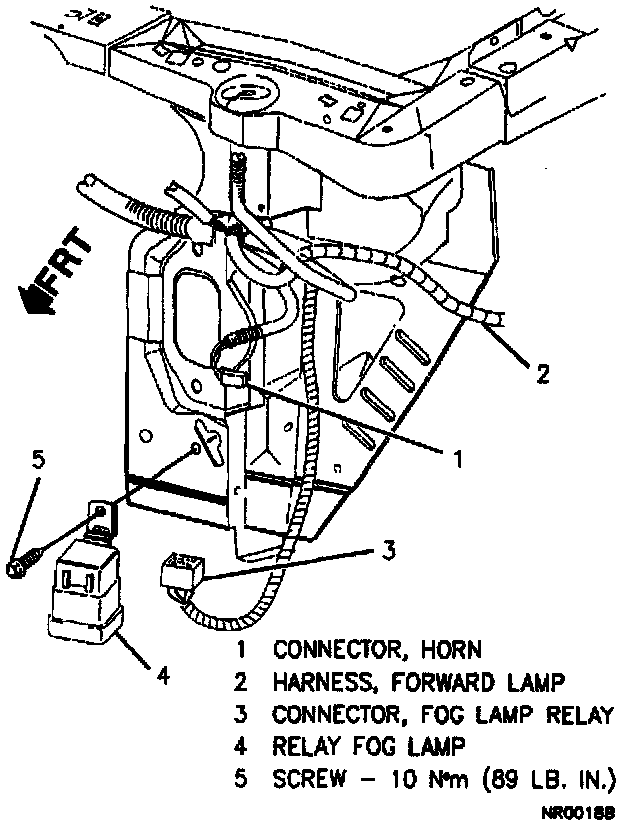

Fog Lamp Relay:

Remove or Disconnect
1. Screws to flexible splash shield forward of the LF wheel.
2. Screw to relay.
3. Relay connector.

Install or Connect
1. Relay connector.
2. Screw to fender.
Tighten
^ Screw to 10 N.m (89 lb. in.)
3. Screws to flexible splash shield - forward of the LF wheel.
