Home >> Oldsmobile >> 1997 >> Achieva V6-3100 3.1L MFI VIN M >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> C2 (Clear or Gray) >> Pins 53-80

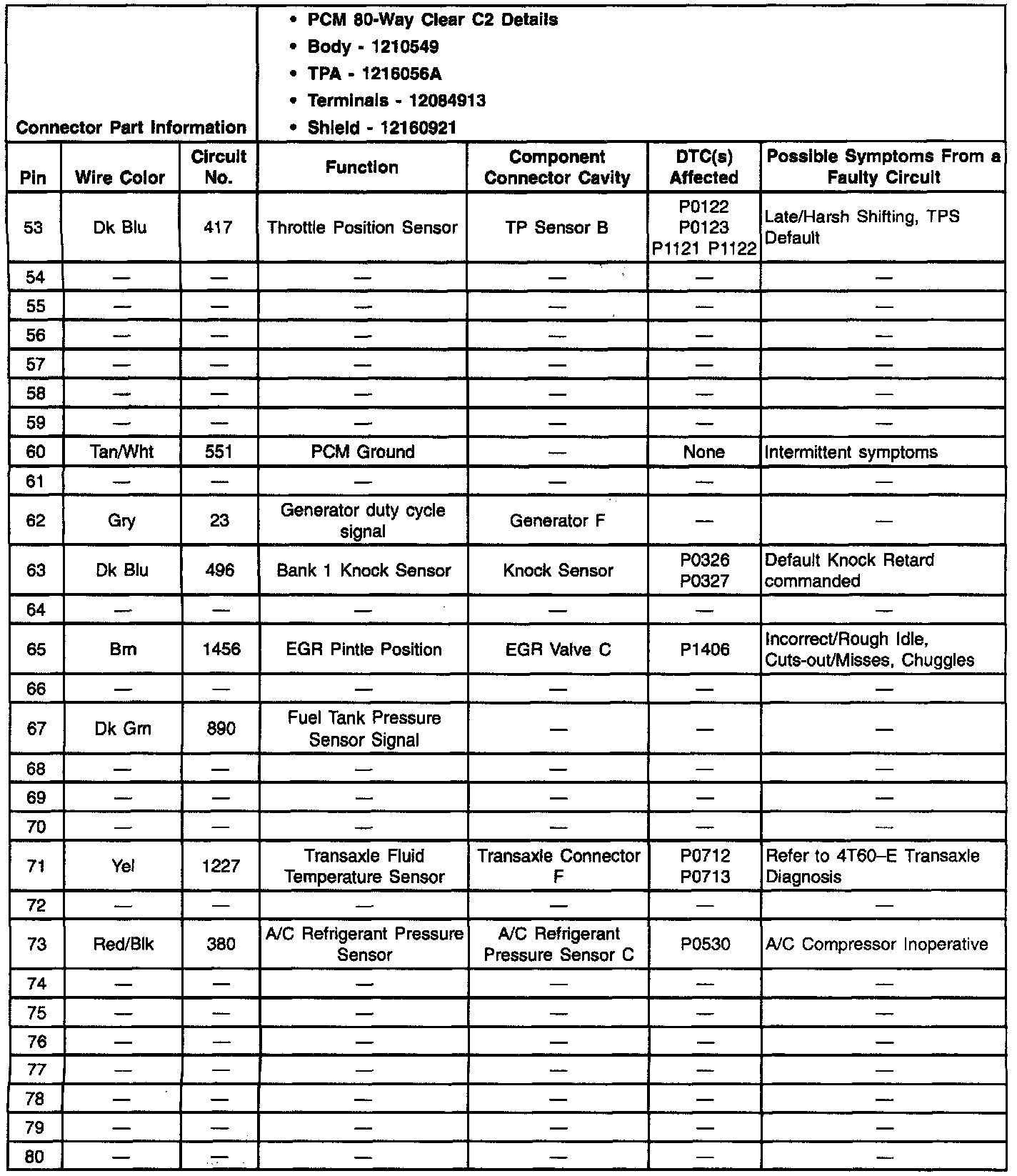

Pins 53-80

Diagnostic Chart:
