Home >> Oldsmobile >> 1997 >> Achieva V6-3100 3.1L MFI VIN M >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> C1 (Blue) >> Pin Information >> Pins 17-47

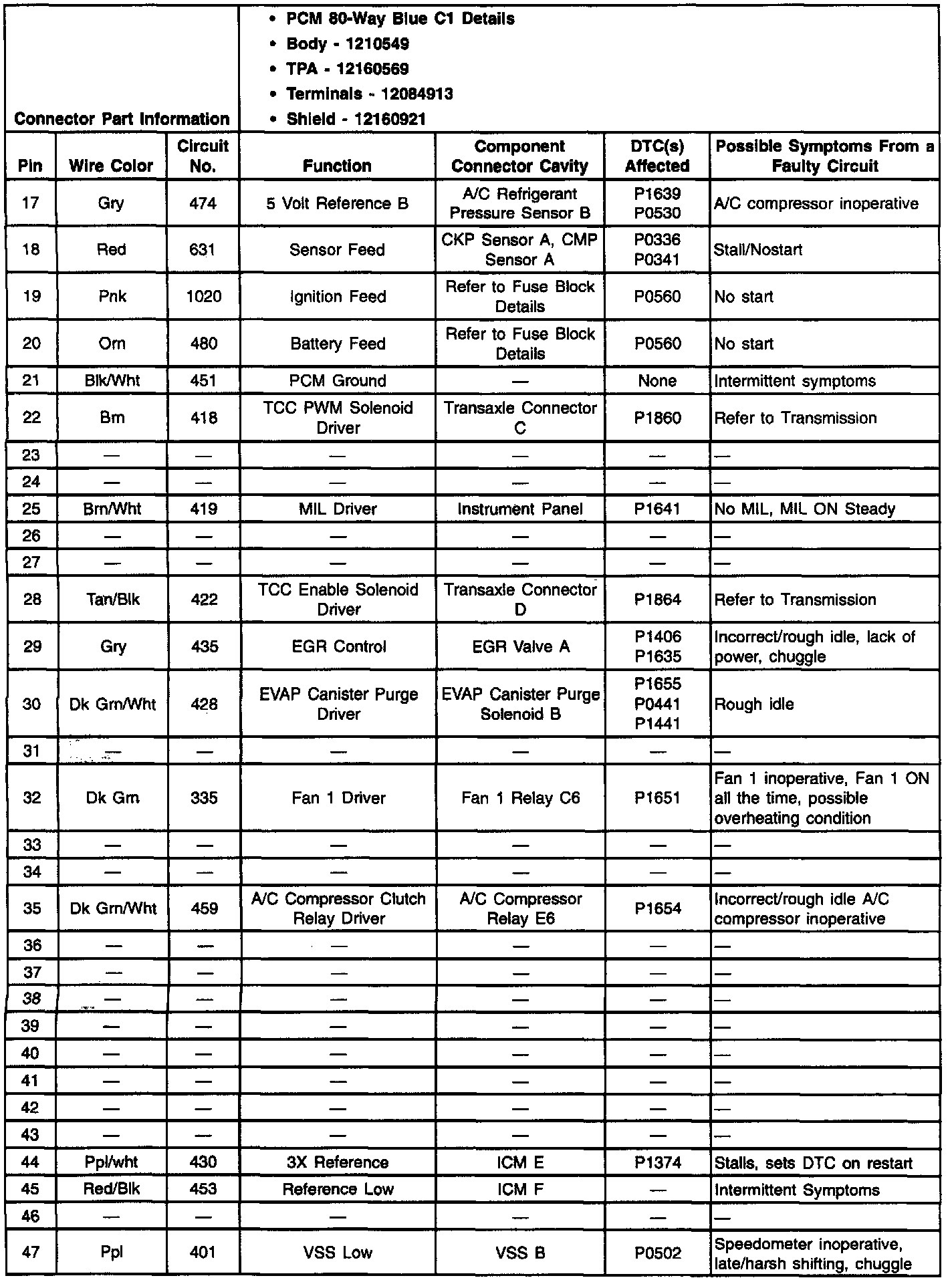

Pins 17-47

Diagnostic Chart:
