Oldsmobile
>>
1997
>>
Achieva V6-3100 3.1L MFI VIN M
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G301
G301

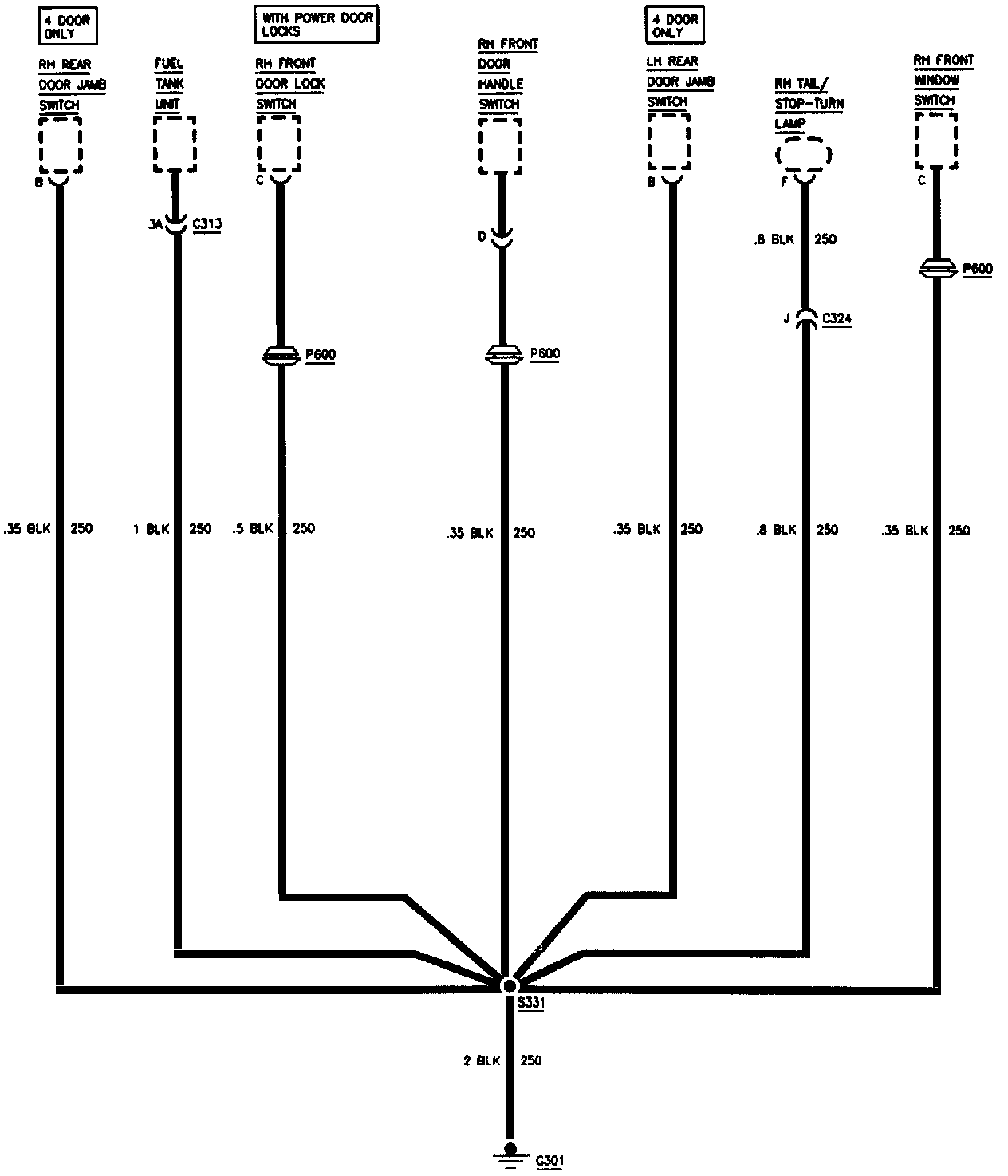

Ground Distribution : G301:
