Home >> Oldsmobile >> 1997 >> Achieva V6-3100 3.1L MFI VIN M >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G200

G200

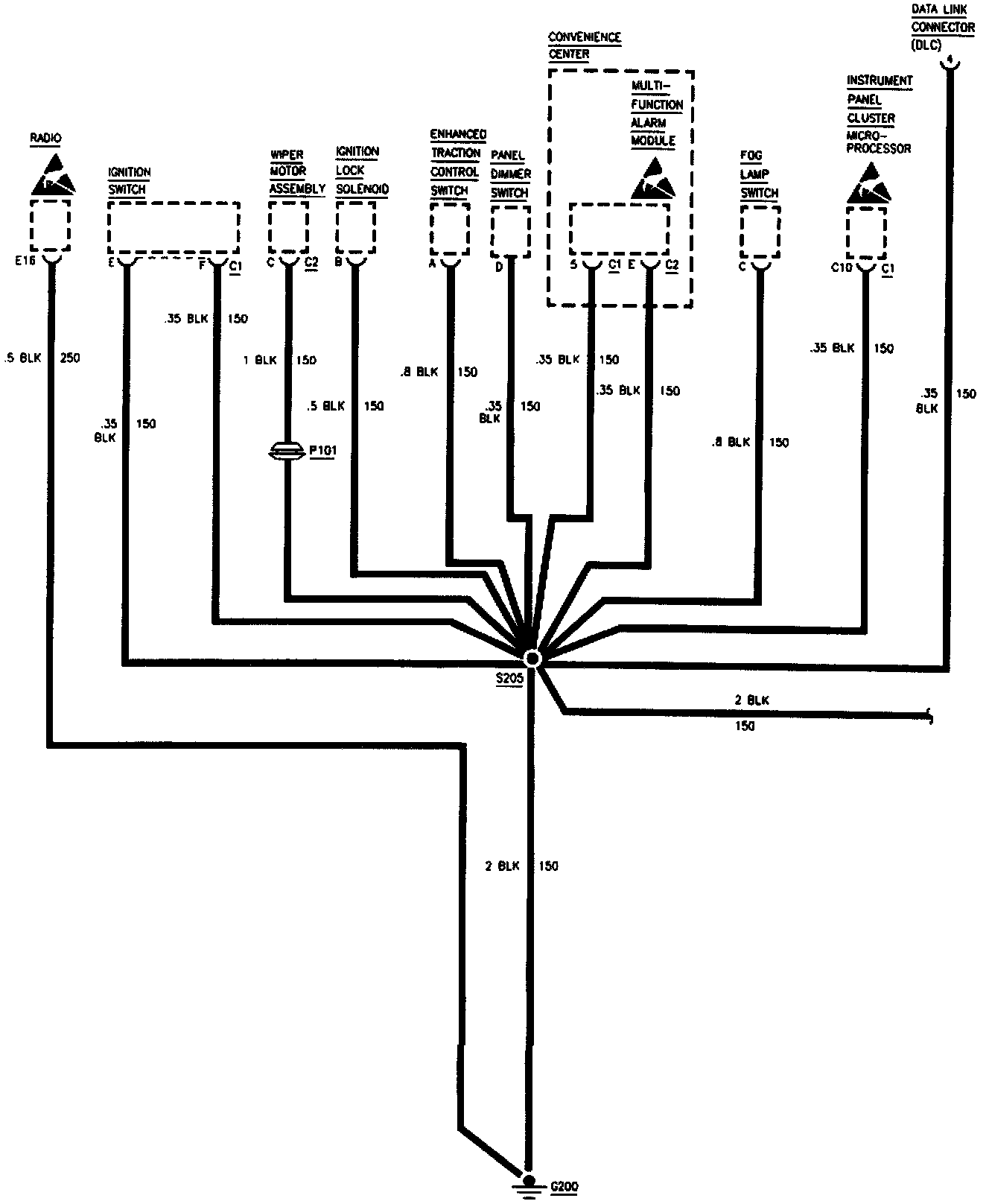

Ground Distribution : G200:

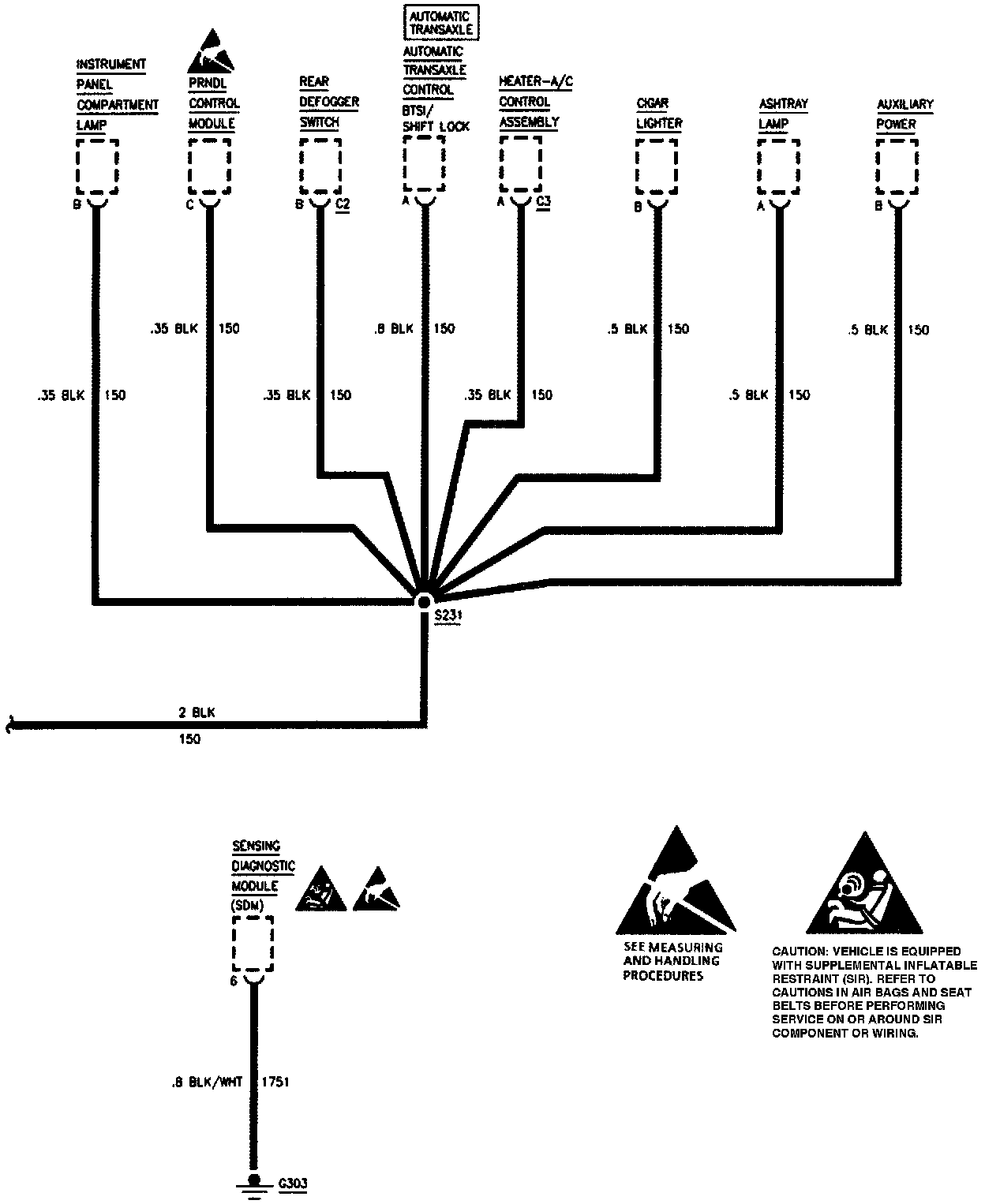

Ground Distribution : G200 And G303:
