Coolant Line/Hose: Service and Repair

REMOVAL
1. Negative battery cable.
2. Drain and recover the coolant so the lever is below the hose, being removed.

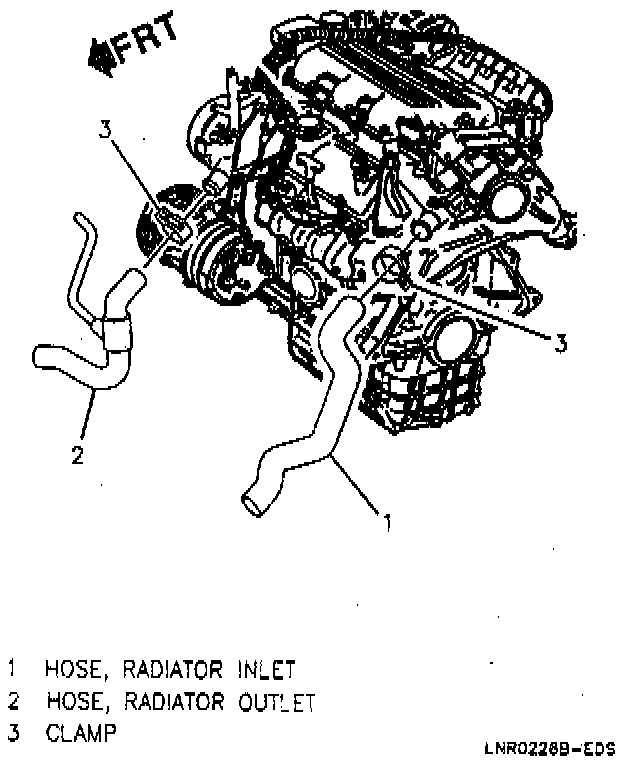

3. Radiator inlet hose from the radiator and thermostat housing.
4. Radiator outlet hose from the radiator, water pump and surge tank.

CAUTION: Make sure the reference marks on the hoses and the radiator are lined up. A twist on the hose would place strain on the radiator fitting which could cause the fitting to crack or break.

INSTALLATION
1. Radiator outlet hose to the radiator, water pump and surge tank.
2. Radiator inlet hose to the radiator and thermostat housing.
3. Negative battery cable.
4. Fill the cooling system. Inspect for leaks.
