HVAC/Radio Housing Replacement

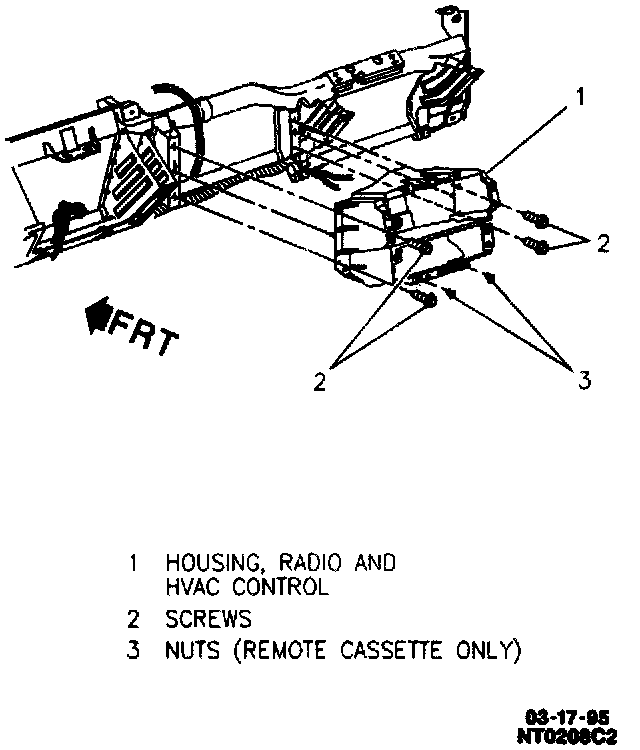

Radio And HVAC Controls Housing (Buick And Oldsmobile):

Radio And HVAC Controls Housing (Pontiac):

Remove or Disconnect
1. Instrument panel.
2. HVAC control head.
3. Radio.
4. Screws to I/P
5. HVAC/radio housing.

Install or Connect
1. HVAC/radio housing.
2. Screws to I/P

Tighten
^ HVAC/radio housing screws to 2 N.m (17 lb. in)

Tighten
^ Ashtray bracket to 2 N.m (17 lb. in.)
4. Ashtray.

5. Radio.
6. HVAC control head.
7. Instrument panel.
