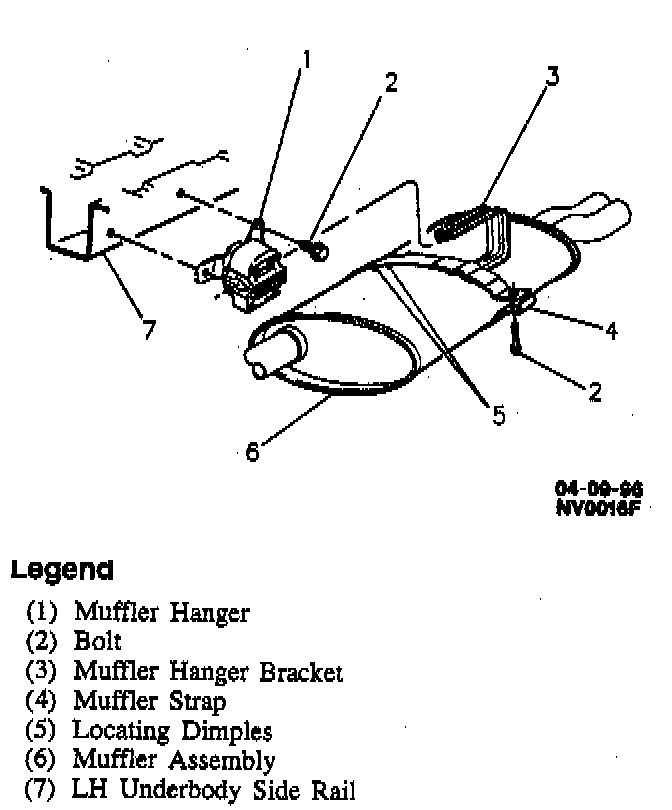

Muffler: Service and Repair
REMOVAL1. raise vehicle.
2. Cut intermediate pipe at muffler near weld.
3. Muffler from hangers.
INSTALLATION
1. Muffler to hangers.
2. Weld muffler to intermediate pipe.
3. Lower vehicle.
1. raise vehicle.
2. Cut intermediate pipe at muffler near weld.
3. Muffler from hangers.
INSTALLATION
1. Muffler to hangers.
2. Weld muffler to intermediate pipe.
3. Lower vehicle.
