Heater Cord Replacement

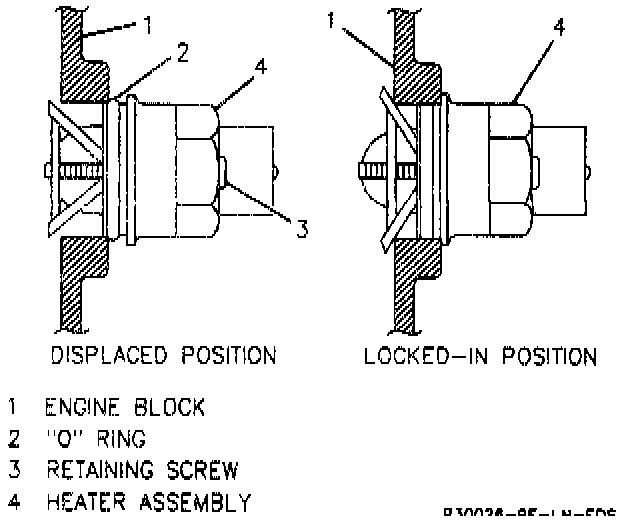

Engine Coolant Heater:

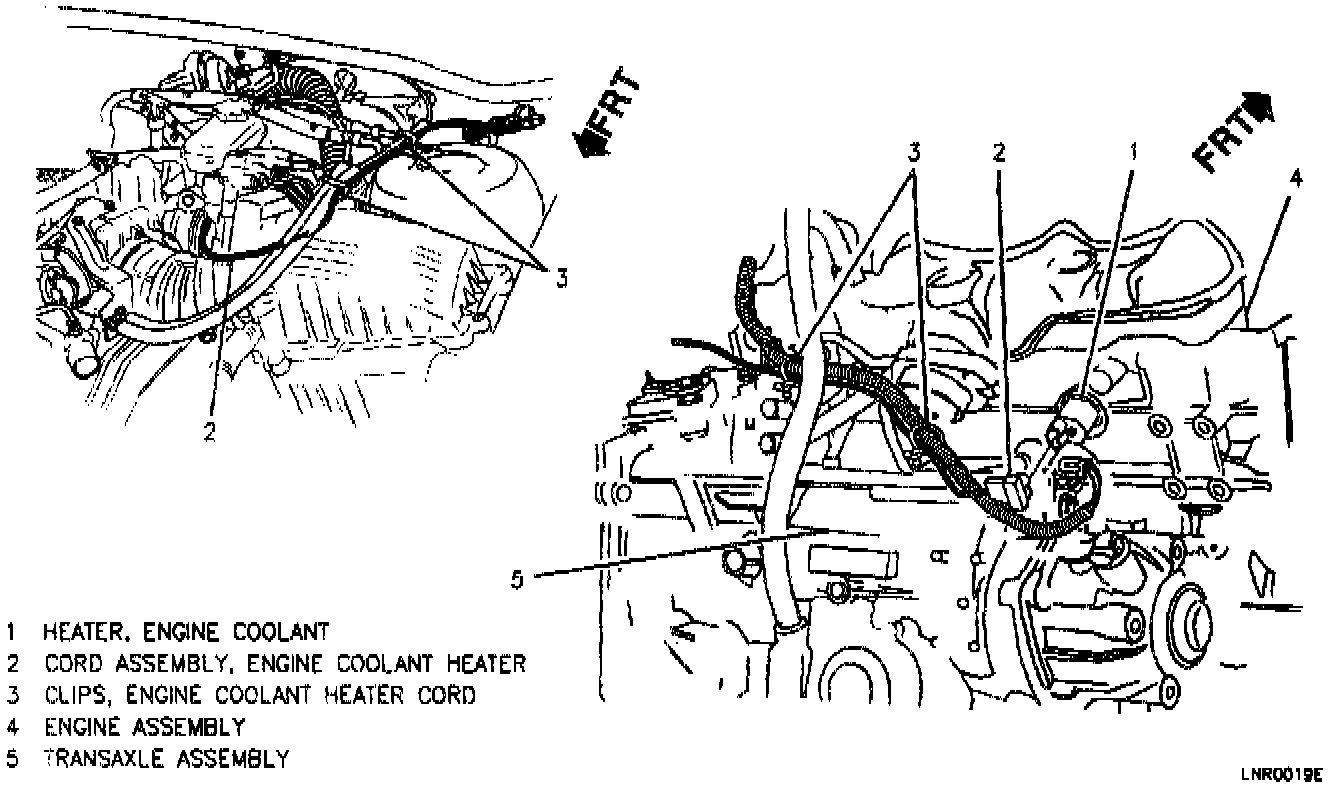

Engine Coolant Heater And Cord Routing:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Cord from engine coolant heater.
3. Cord assembly.

Engine Coolant Heater:

Engine Coolant Heater And Cord Routing:

INSTALL OR CONNECT
1. Cord assembly.

Important: Cord must not contact hot surfaces or any moving parts.

2. Cord to engine coolant heater.
3. Negative battery cable.
