Brake Pedal Assy: Service and Repair

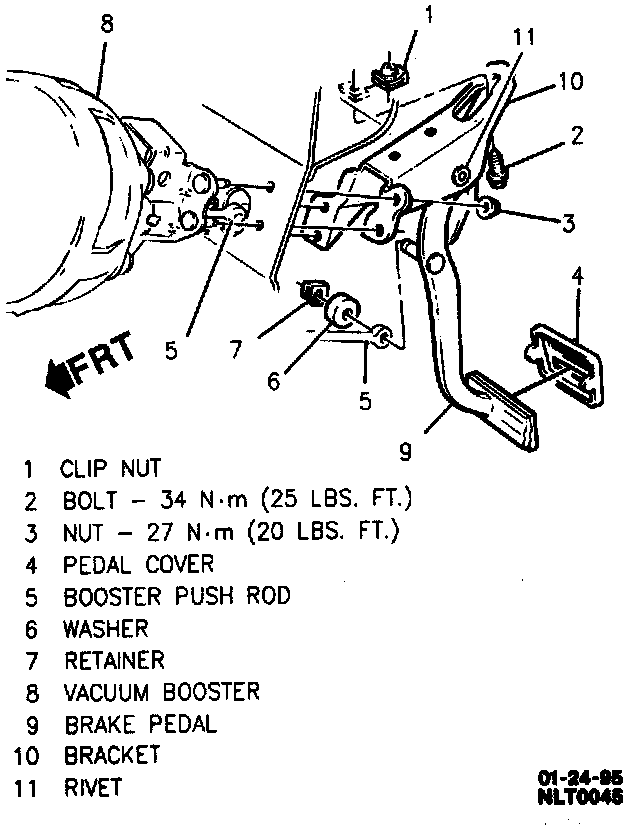

Brake Pedal Assembly:

REMOVE OR DISCONNECT
1. Lower steering column panel.
2. Pushrod from brake pedal.
3. Brake pedal assembly nuts.
4. Brake pedal assembly.

INSTALL OR CONNECT
1. Brake pedal assembly.
2. Brake pedal assembly nuts. Tighten brake pedal nuts to 27 Nm (20 ft lbs.).
3. Pushrod to brake pedal.
4. Lower steering column panel.
