Eighty-Eight Royale FWD V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radiator Cooling Fan Motor
>>
Cooling System
Cooling System

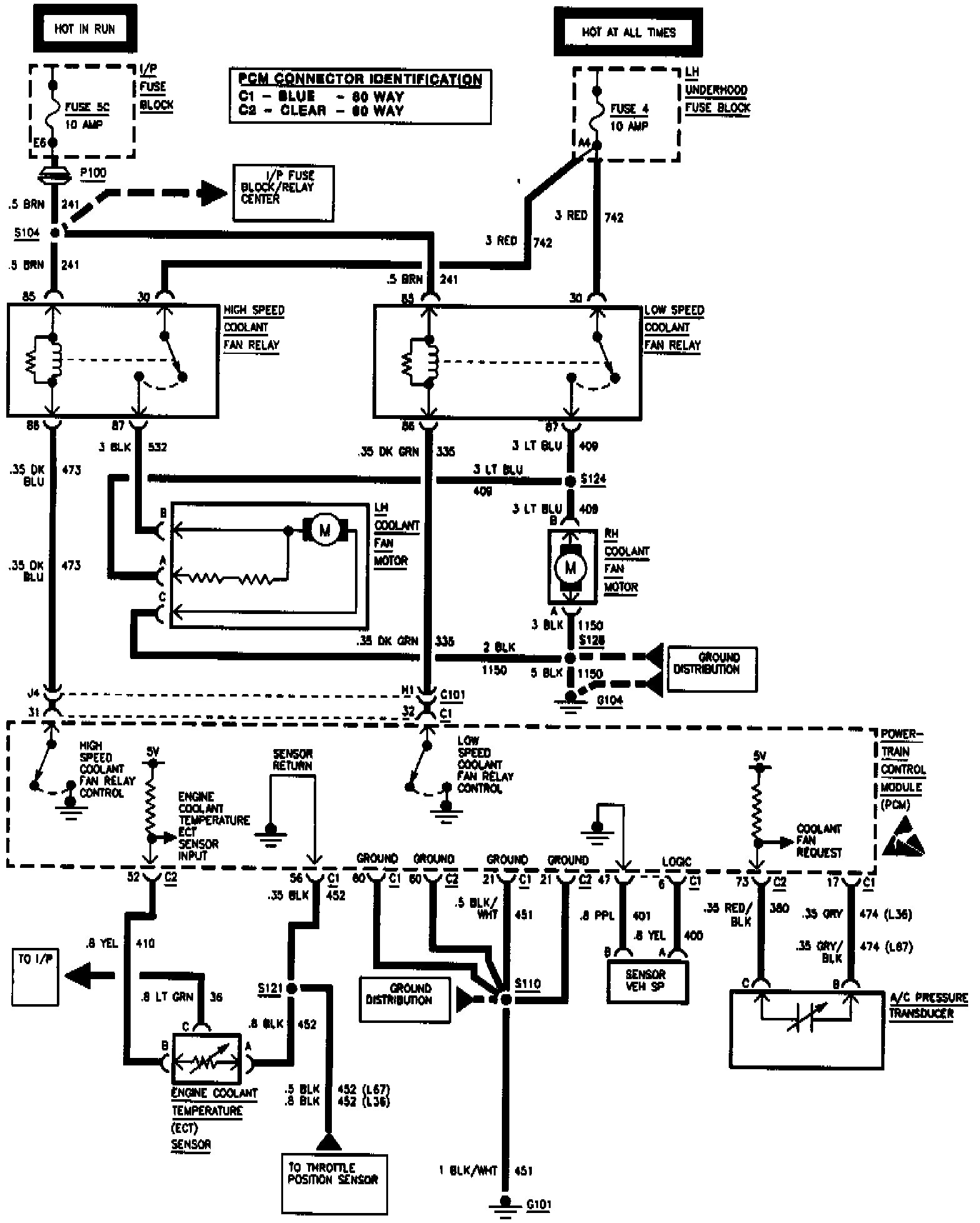

Fig. 87 Cooling Fan Wiring Circuit:
