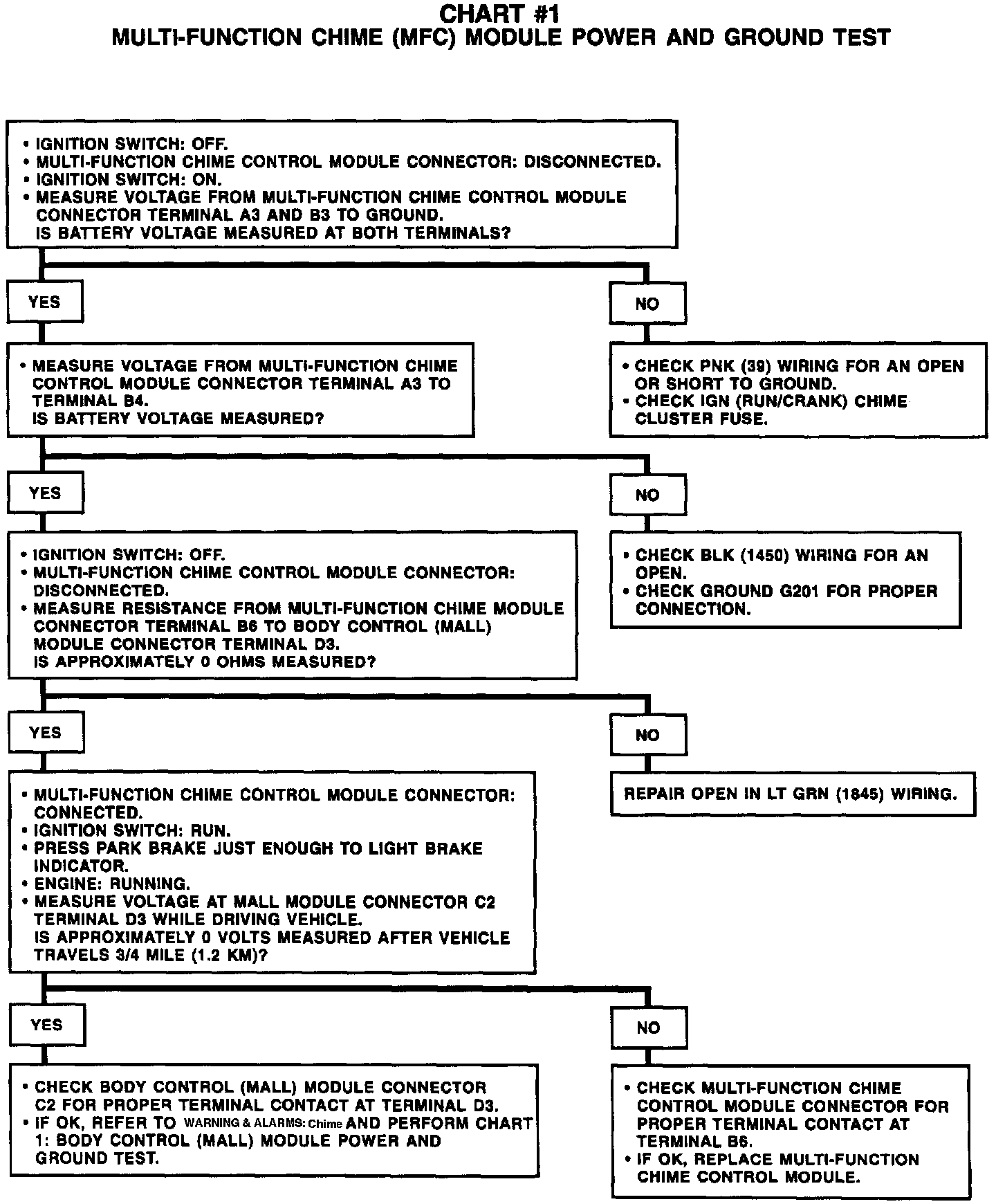

Chart #1 Multi-Function Chime (MFC) Module Power & GND Test
Chart #1 Multi-Function Chime (MFC) Module Power & GND Test
Chart #1 Multi-Function Chime (MFC) Module Power And Ground Test:
