Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1996
>>
Eighty-Eight LSS FWD V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Diagnostic By Symptom Charts - Chime
>>
Chart #1 Body Control Module (Mall) Power & Ground Test
Chart #1 Body Control Module (Mall) Power & Ground Test

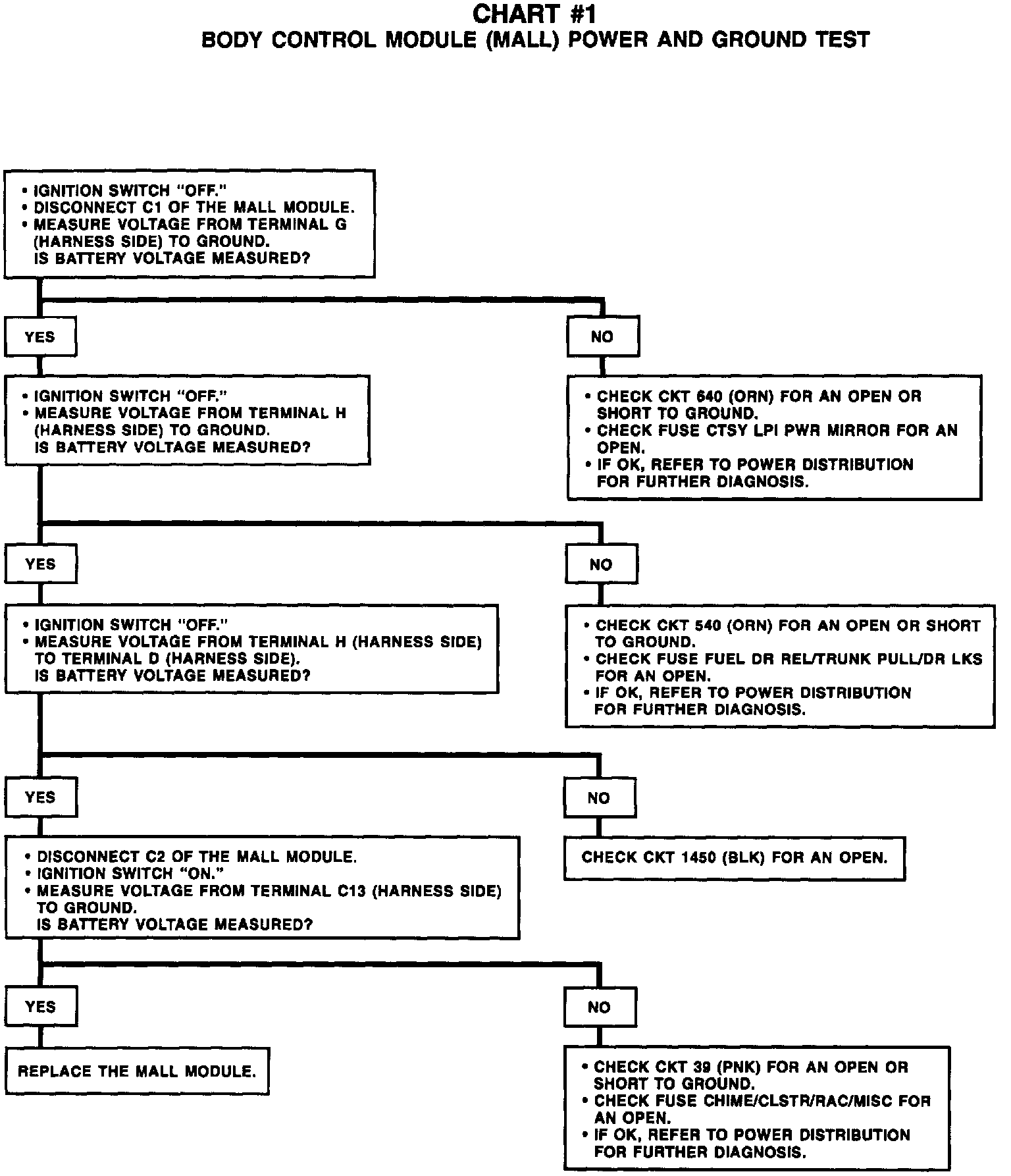

Chart #1 Body Control Module (MALL) Power And Ground Test:
