Oldsmobile
>>
1996
>>
Eighty-Eight LSS FWD V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
System Diagram
>>
With Electrochromic Mirrors
With Electrochromic Mirrors

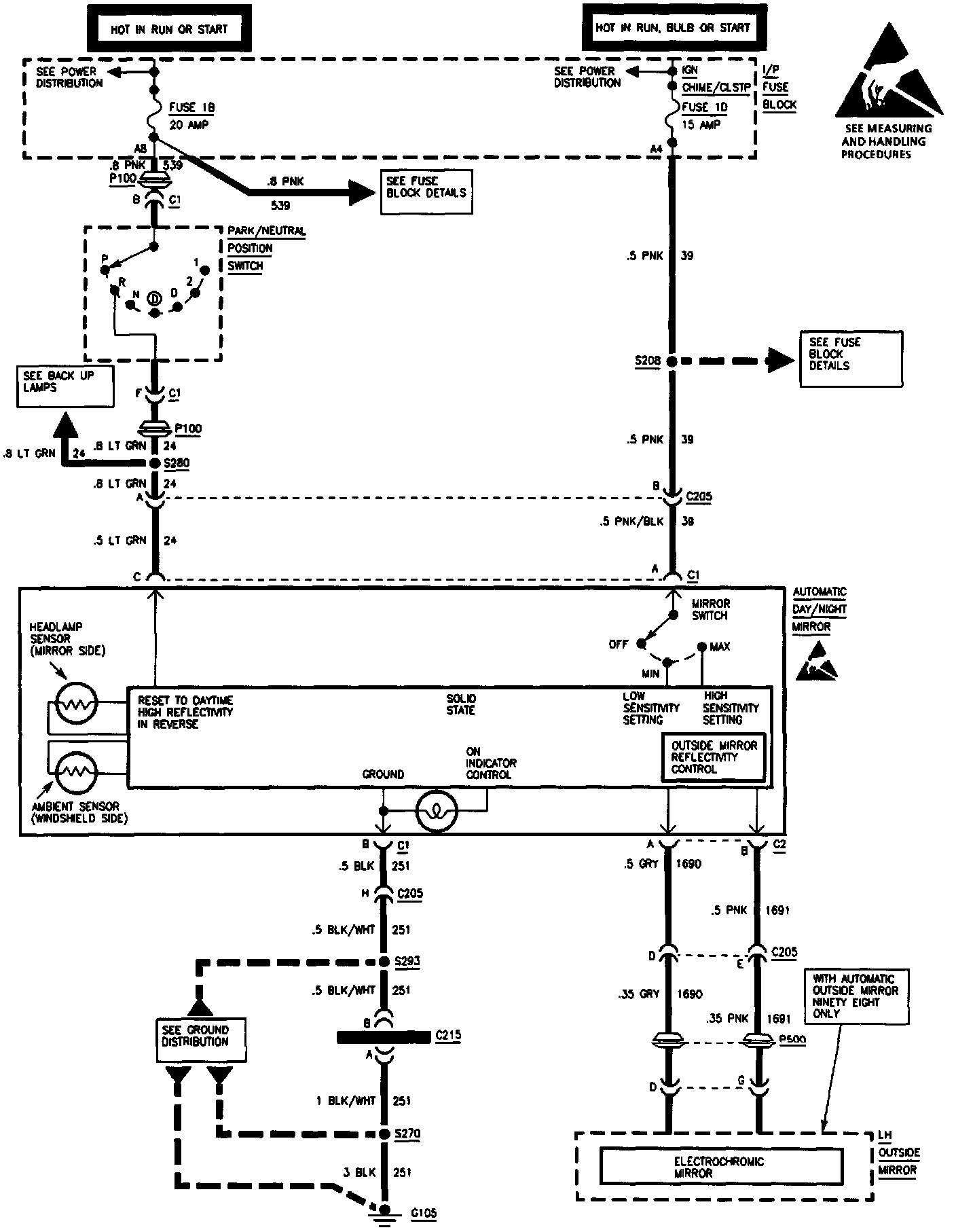

Electrochromic Mirror (DD9):
