Eighty-Eight LSS FWD V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Coolant Level Indicator Lamp
>>
Digital Cluster
Digital Cluster

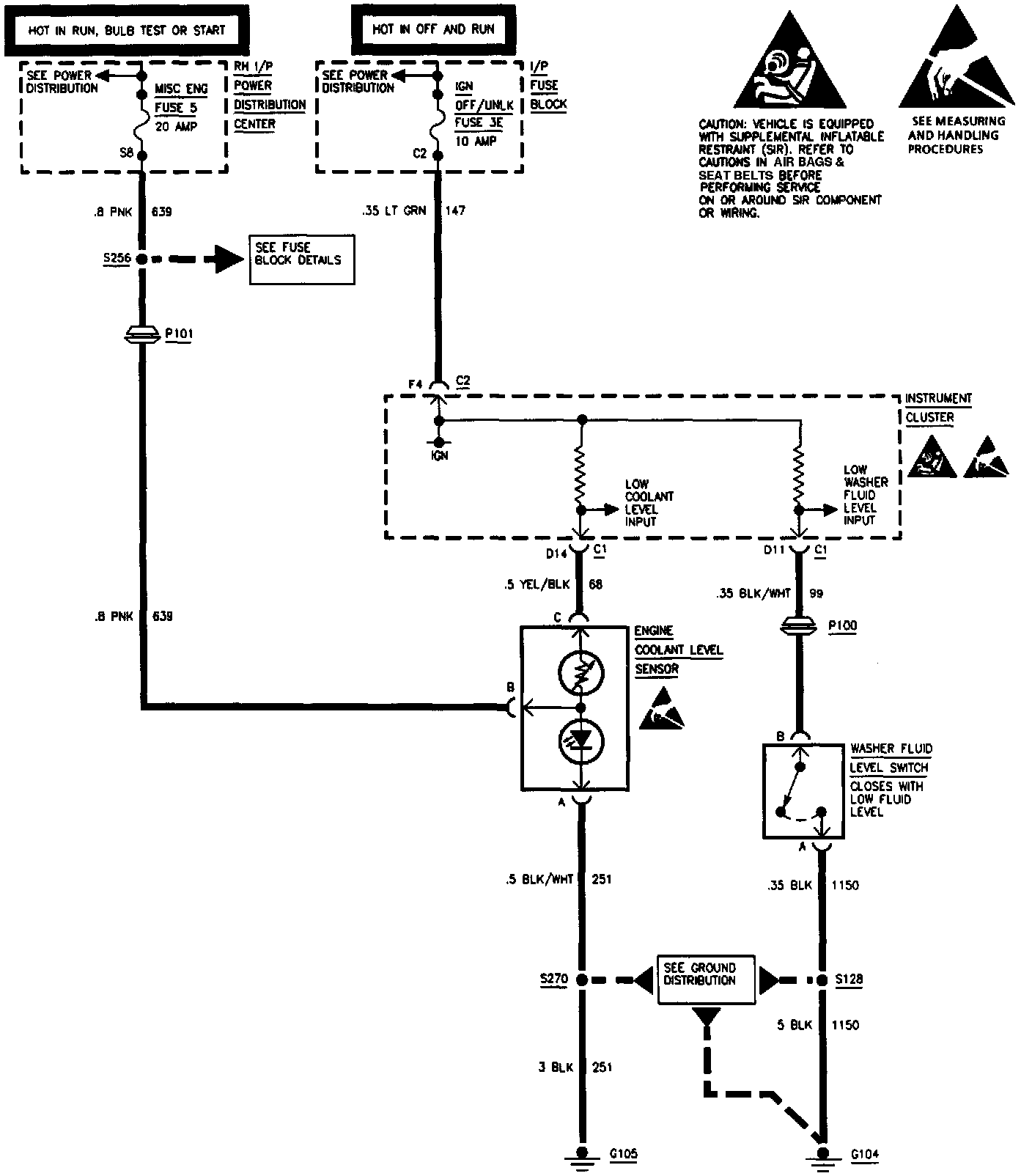

Digital Cluster (U2A) (Part 6 Of 11):
