Pinout Description

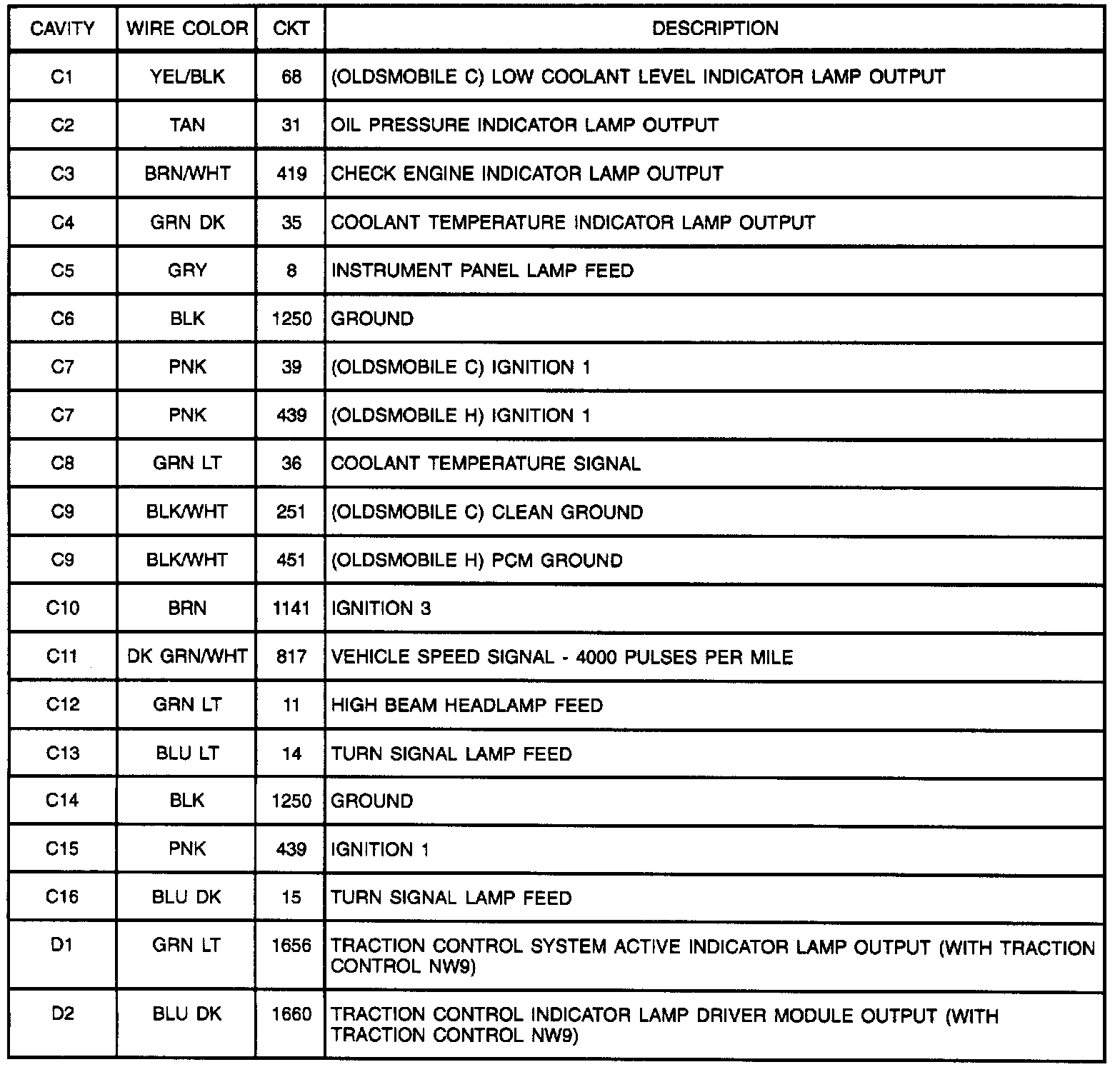

Indicator Cluster: With U2E (Part 1 Of 2):

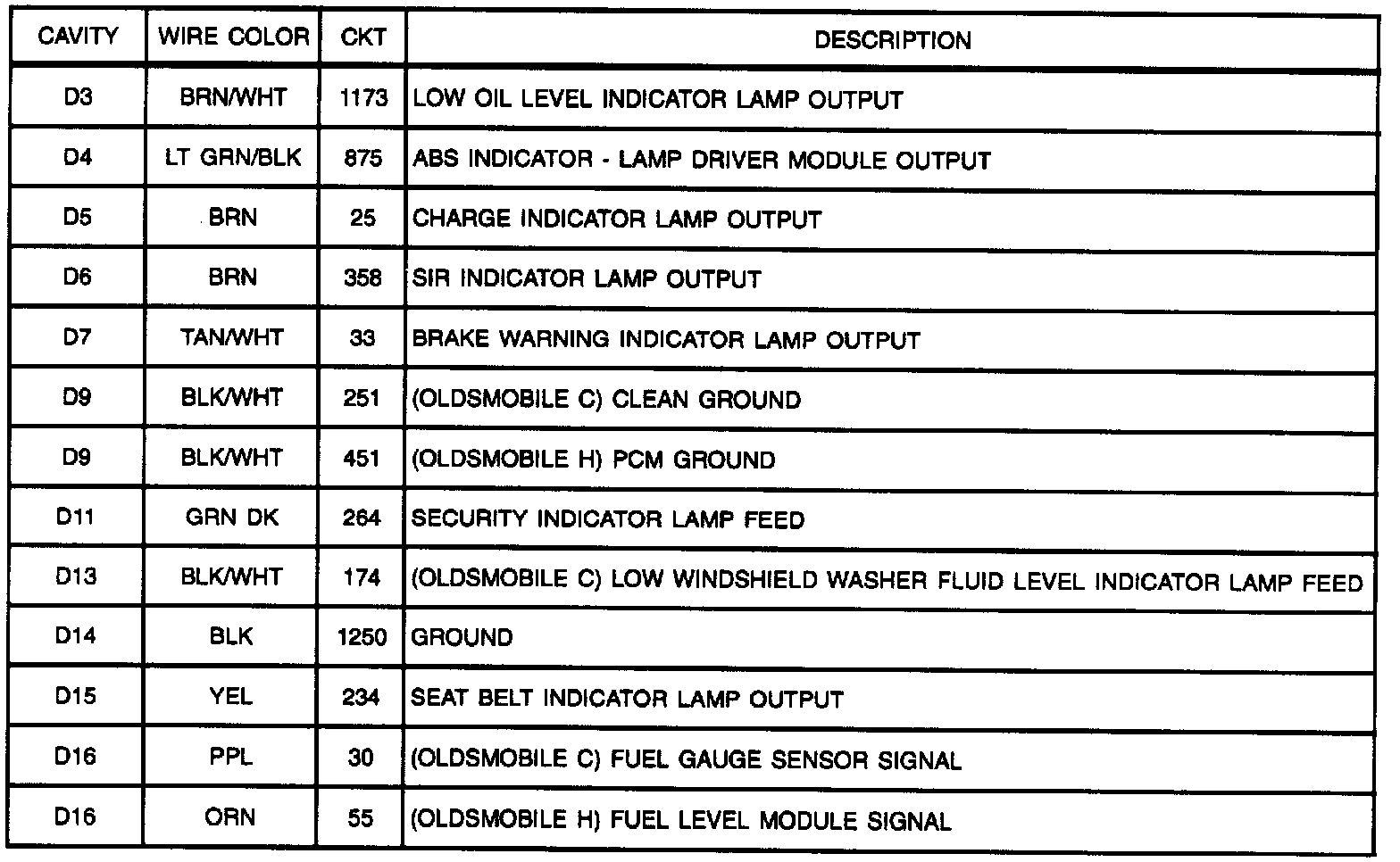

Indicator Cluster: With U2E (Part 2 Of 2):
