Instrument Panel, Gauges and Warning Indicators
>>
Door Switch
Door Switch

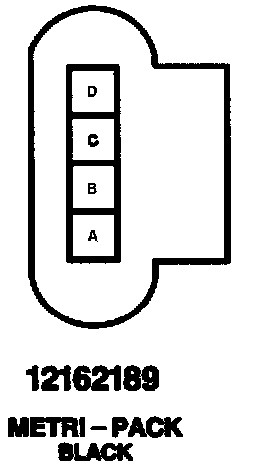

Door Jamb Switch:

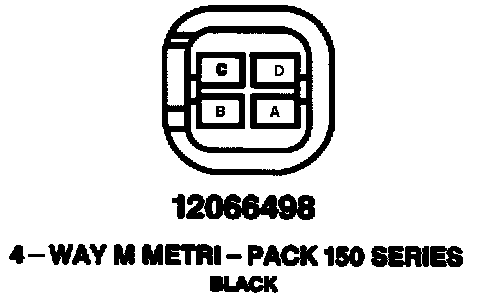

RH Front Door Key Switch:
