Fuel Pressure Test Port: Locations

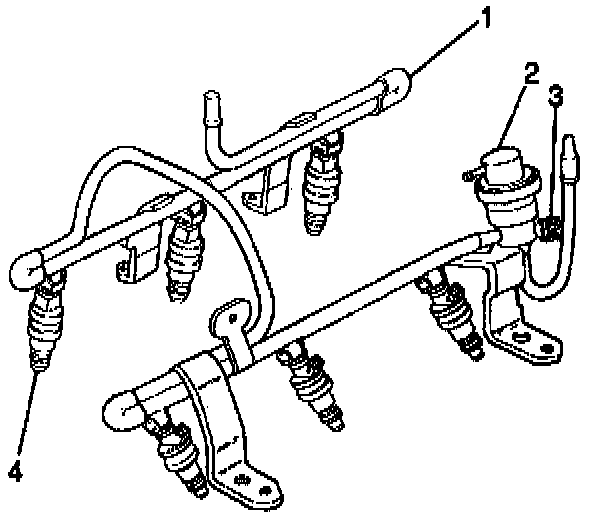

Fuel Rail:






IMAGE LEGEND
(1) Fuel Rail
(2) Fuel Pressure Regulator
(3) Fuel Pressure Test Port
(4) Fuel Injector
