Home >> Oldsmobile >> 1996 >> Cutlass Supreme V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Temperature Controls >> CJ3

CJ3

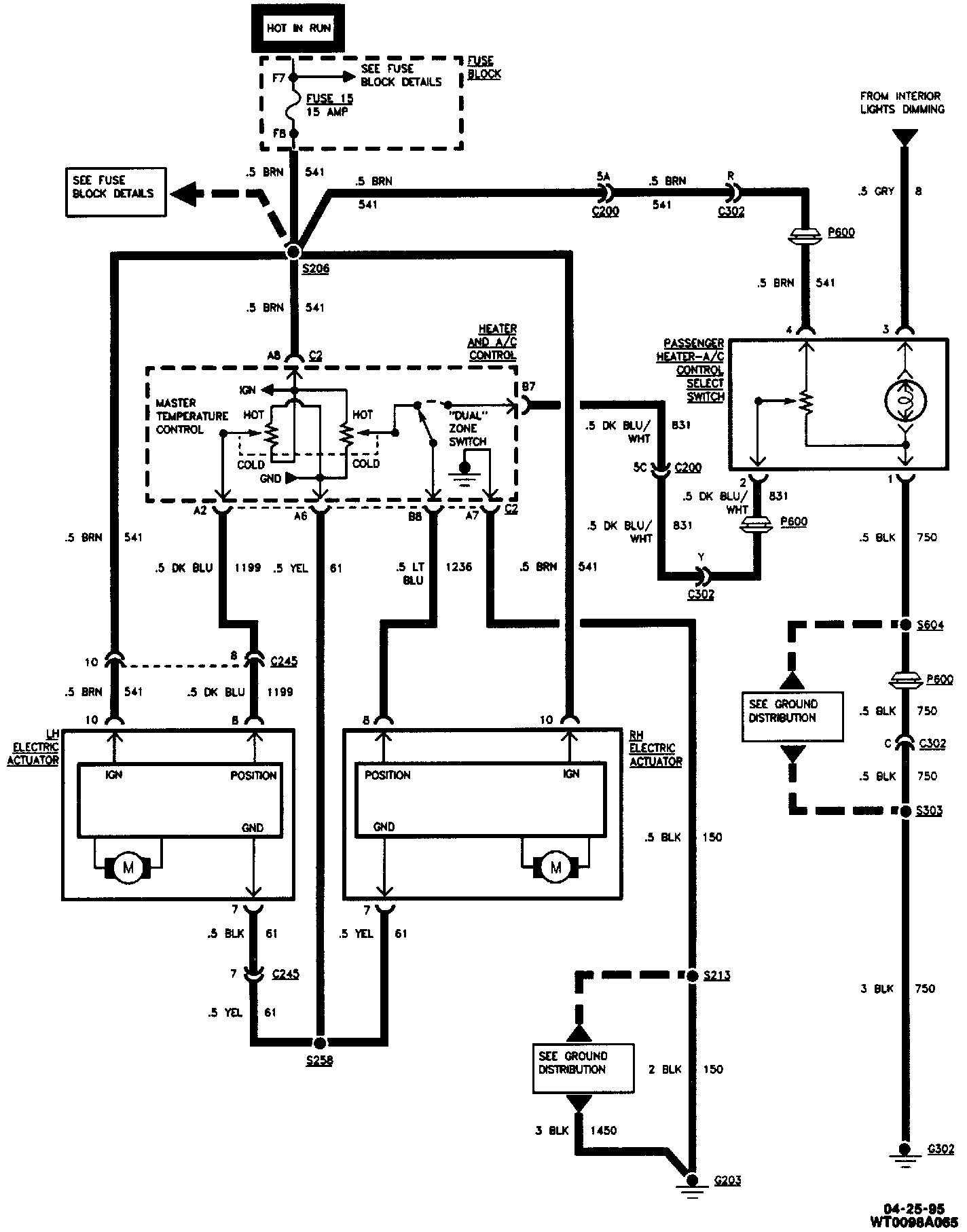

Temperature Controls (RPO CJ3) Dual Zone:

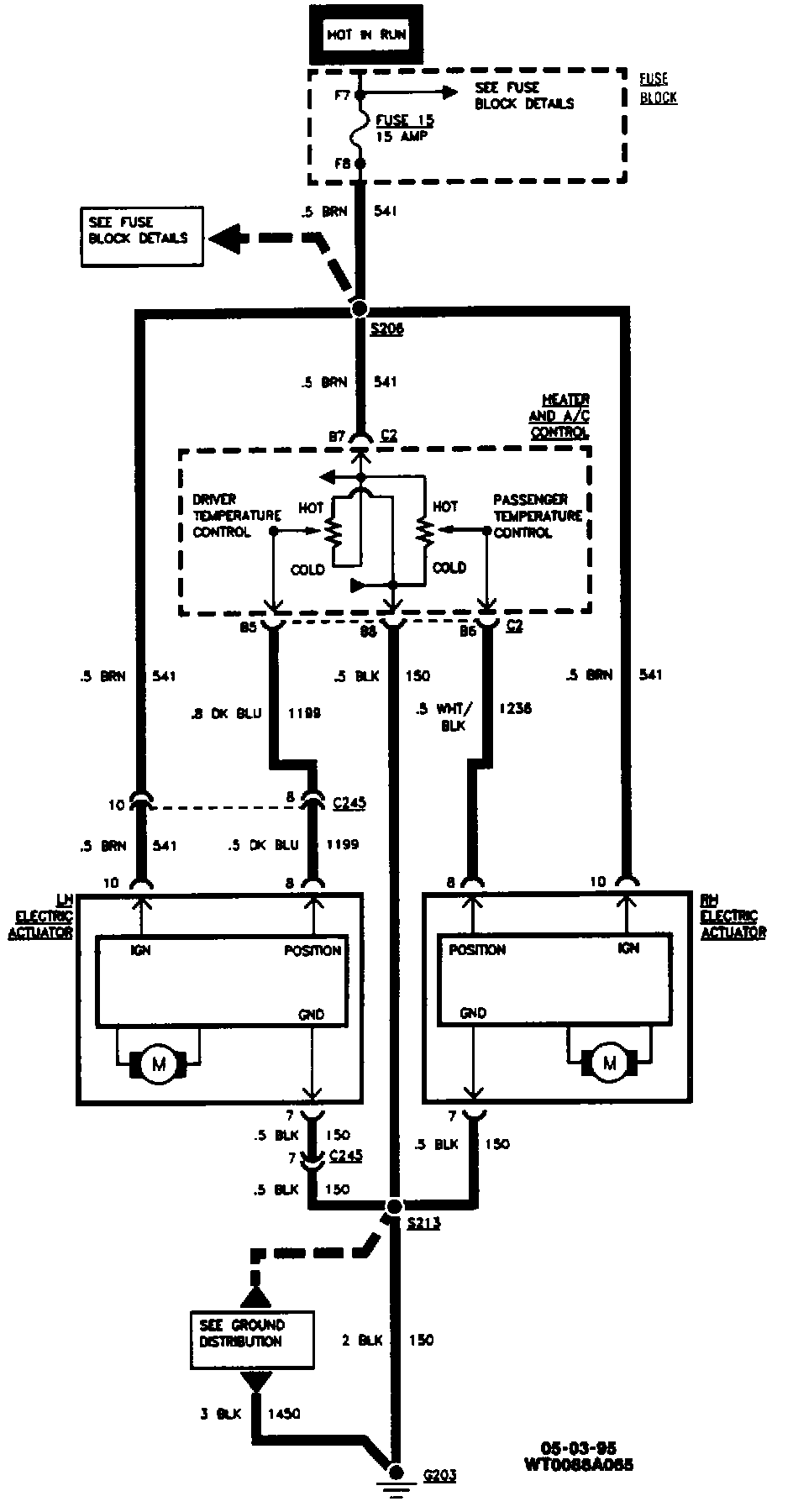

Temperature Controls (RPO CJ3) Dual Zone:
