Cutlass Supreme V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Transmission Controls
Transmission Controls

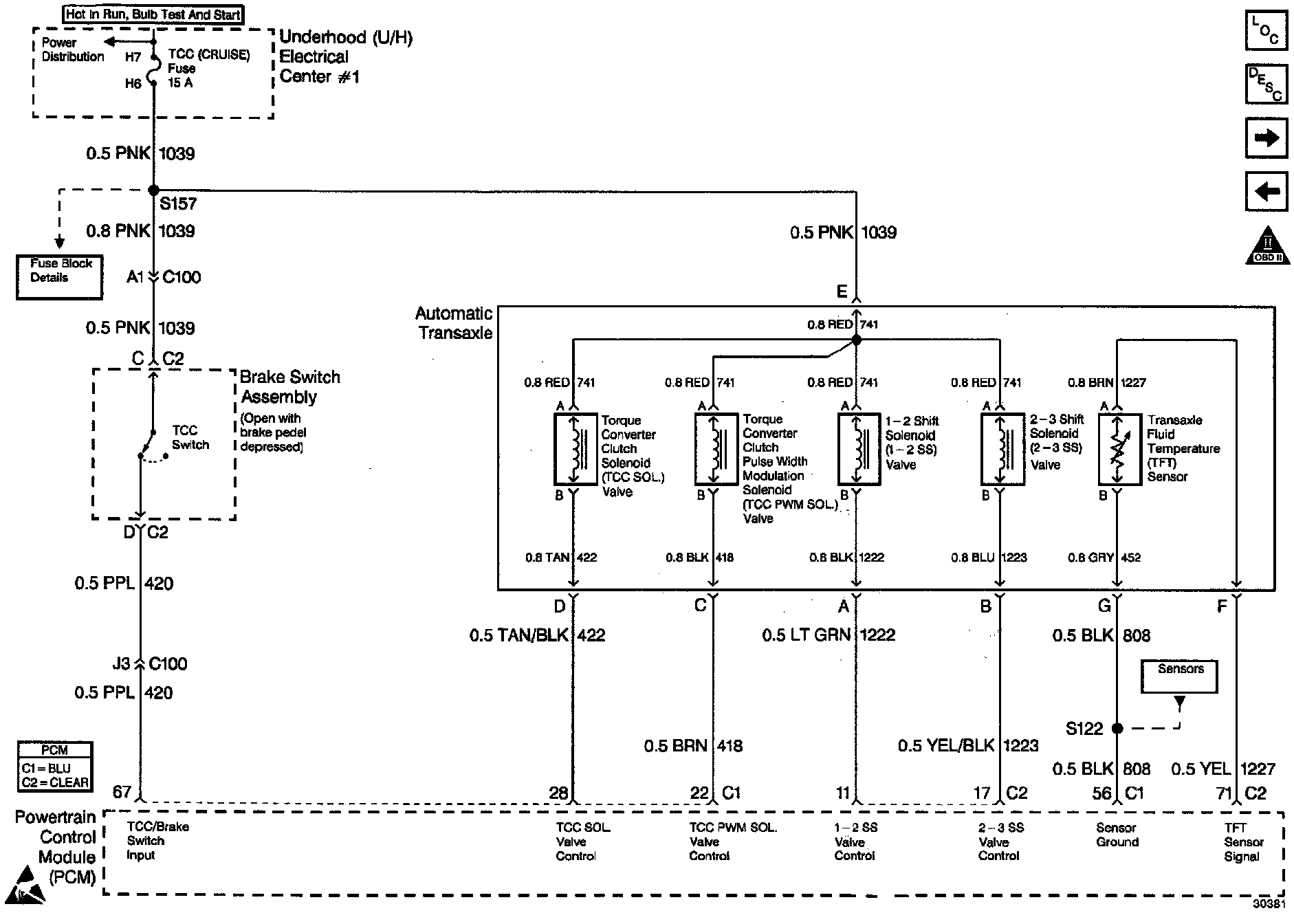

Engine Controls (TCC And Brake Switch Systems):
