Cylinder Head Bolt Torque and Sequence

Cylinder Head Bolts

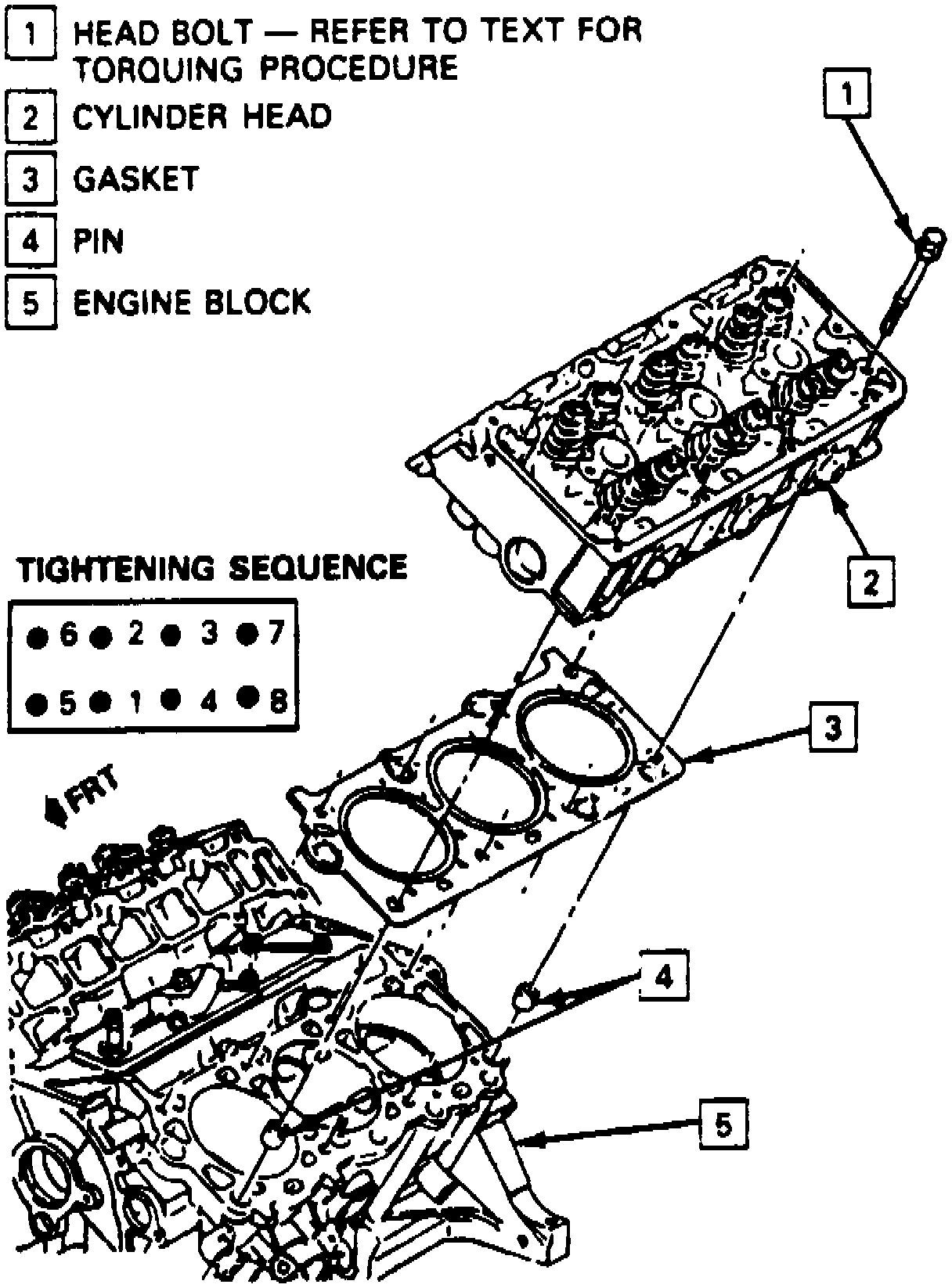

Cylinder Head Bolt Tightening Sequence:

In the sequence shown (refer to figure 5):

Torque bolts to 44 ft. lbs.
Turn bolts an additional 90°
