Achieva V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Delivery & Controls
>>
Fuel Injectors
Fuel Injectors

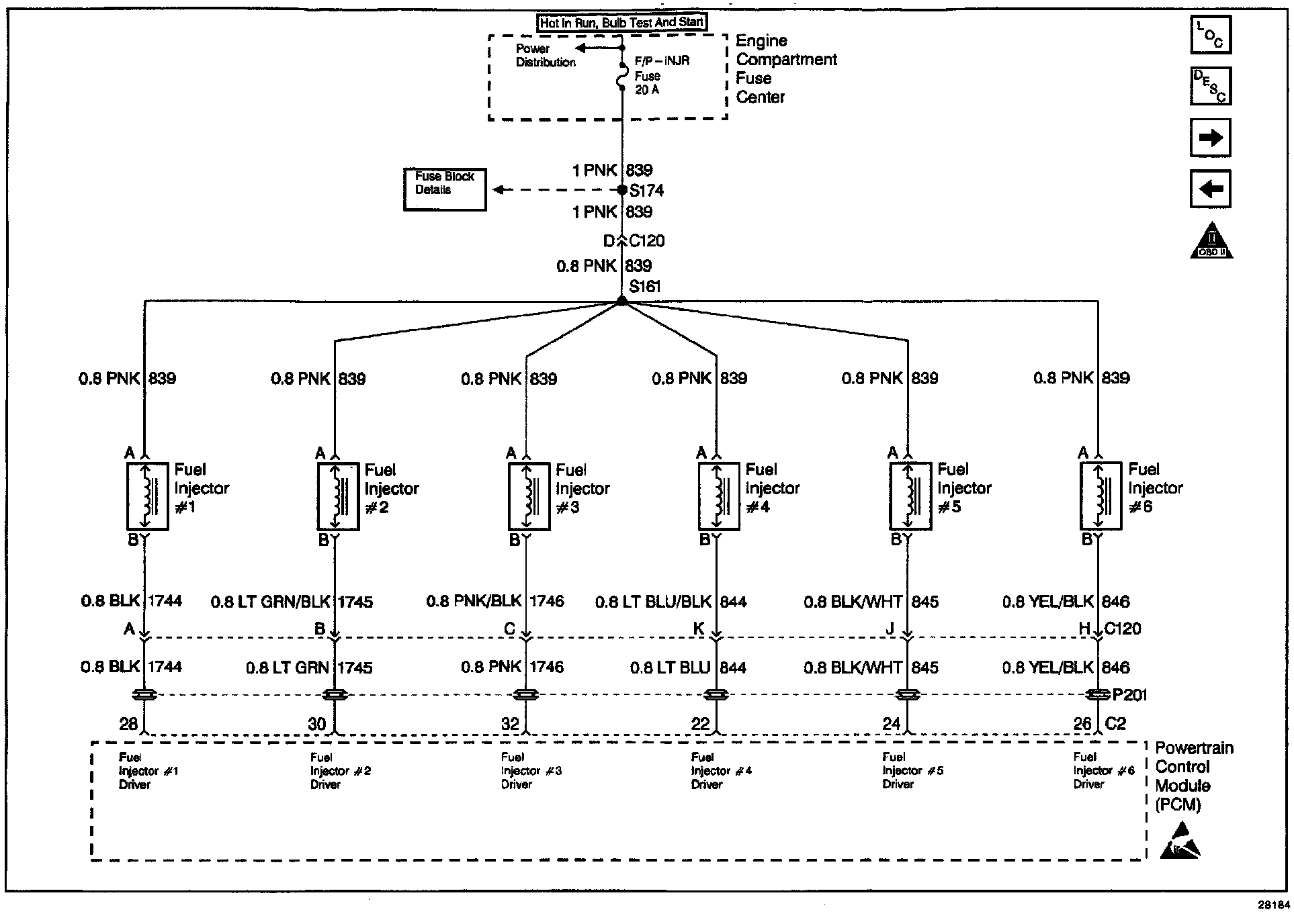

Engine Controls (Fuel Injectors):
