Home >> Oldsmobile >> 1996 >> Achieva V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> ERLS And ABS Fuse

ERLS And ABS Fuse

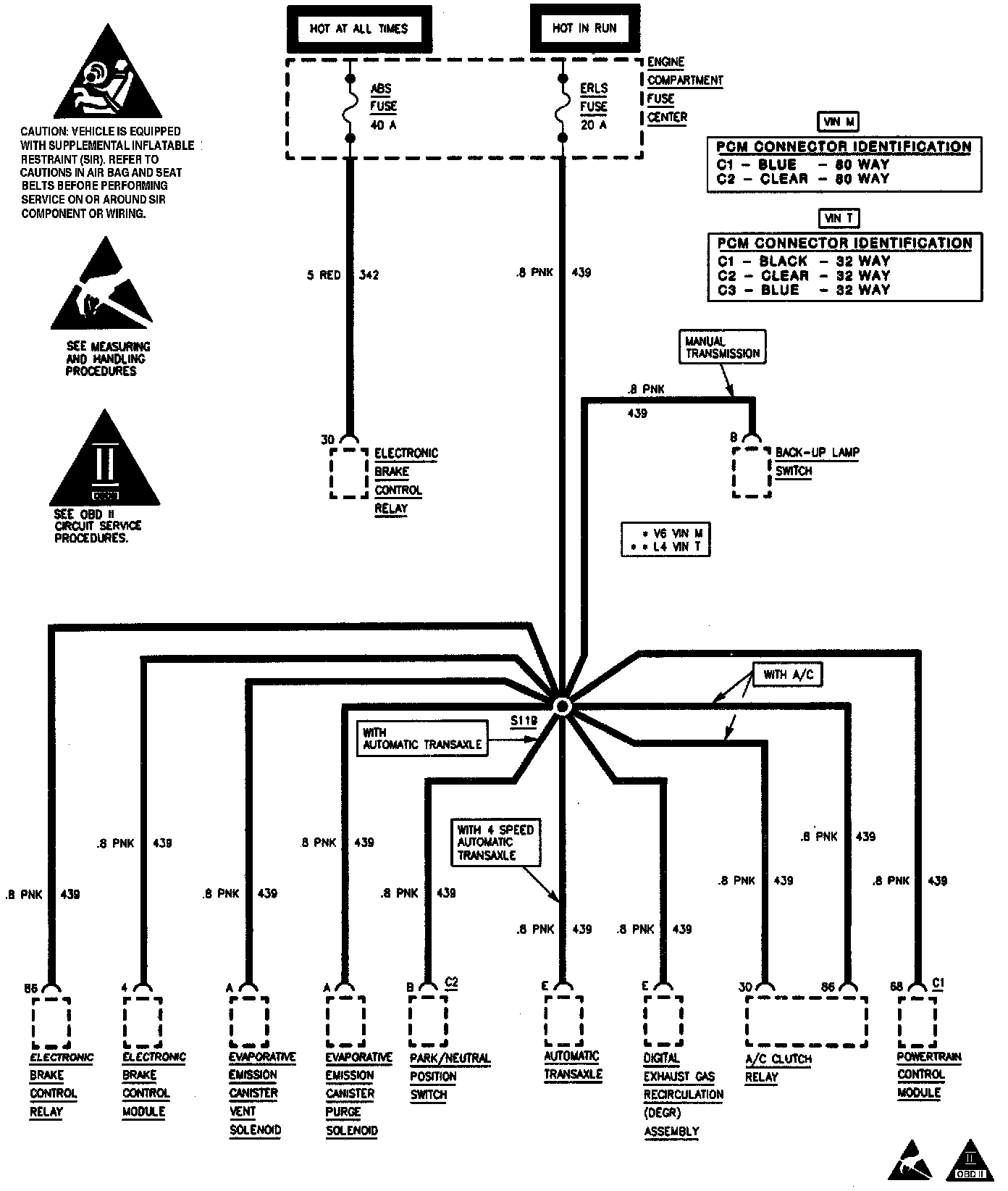

Fuse Block Details: ERLS And ABS Fuse:
