Oldsmobile
>>
1996
>>
Achieva V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Fuses
>>

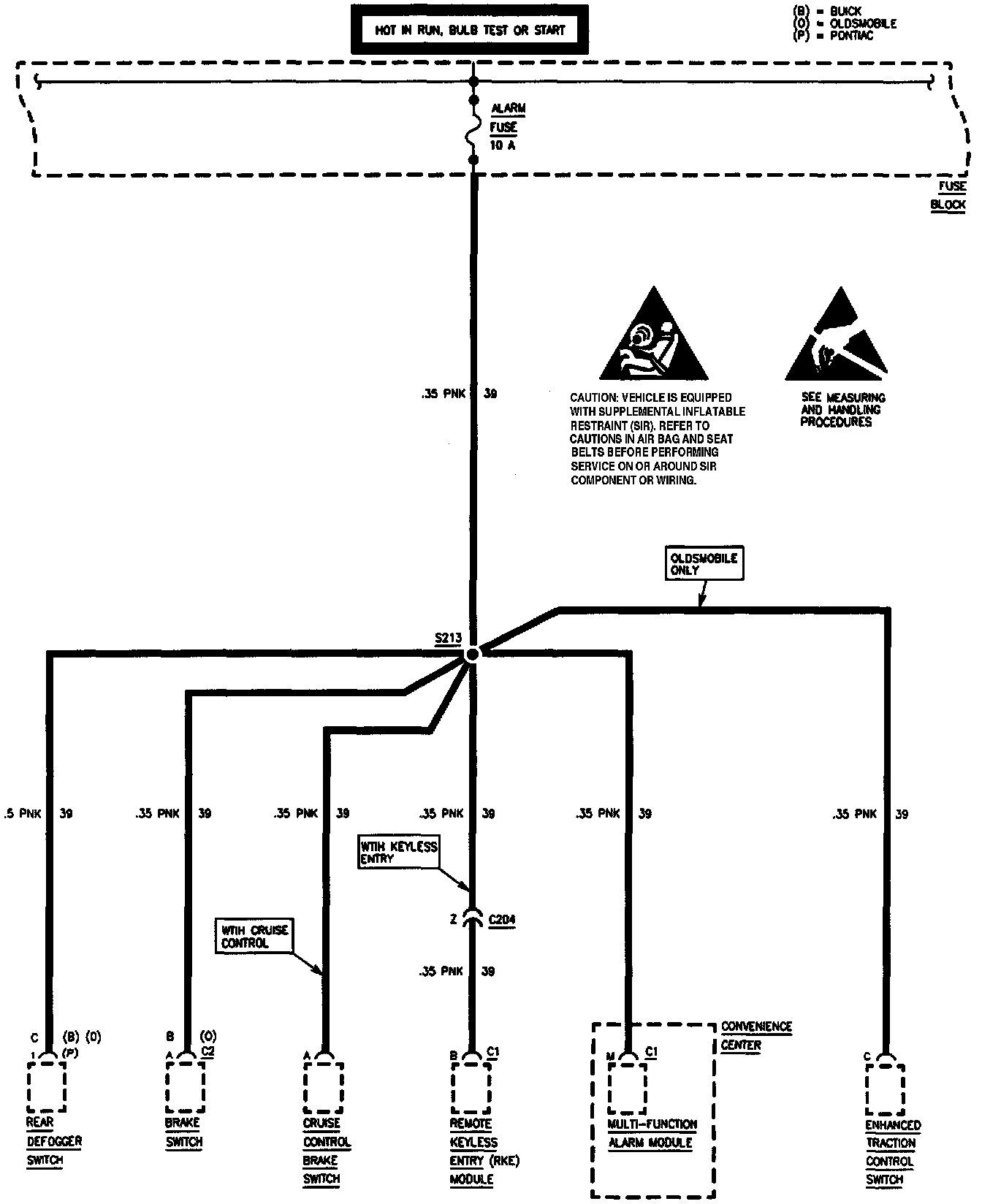

Alarm Fuse
Alarm Fuse
Fuse Block Details: Alarm Fuse:
