Home >> Oldsmobile >> 1996 >> Achieva V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G301

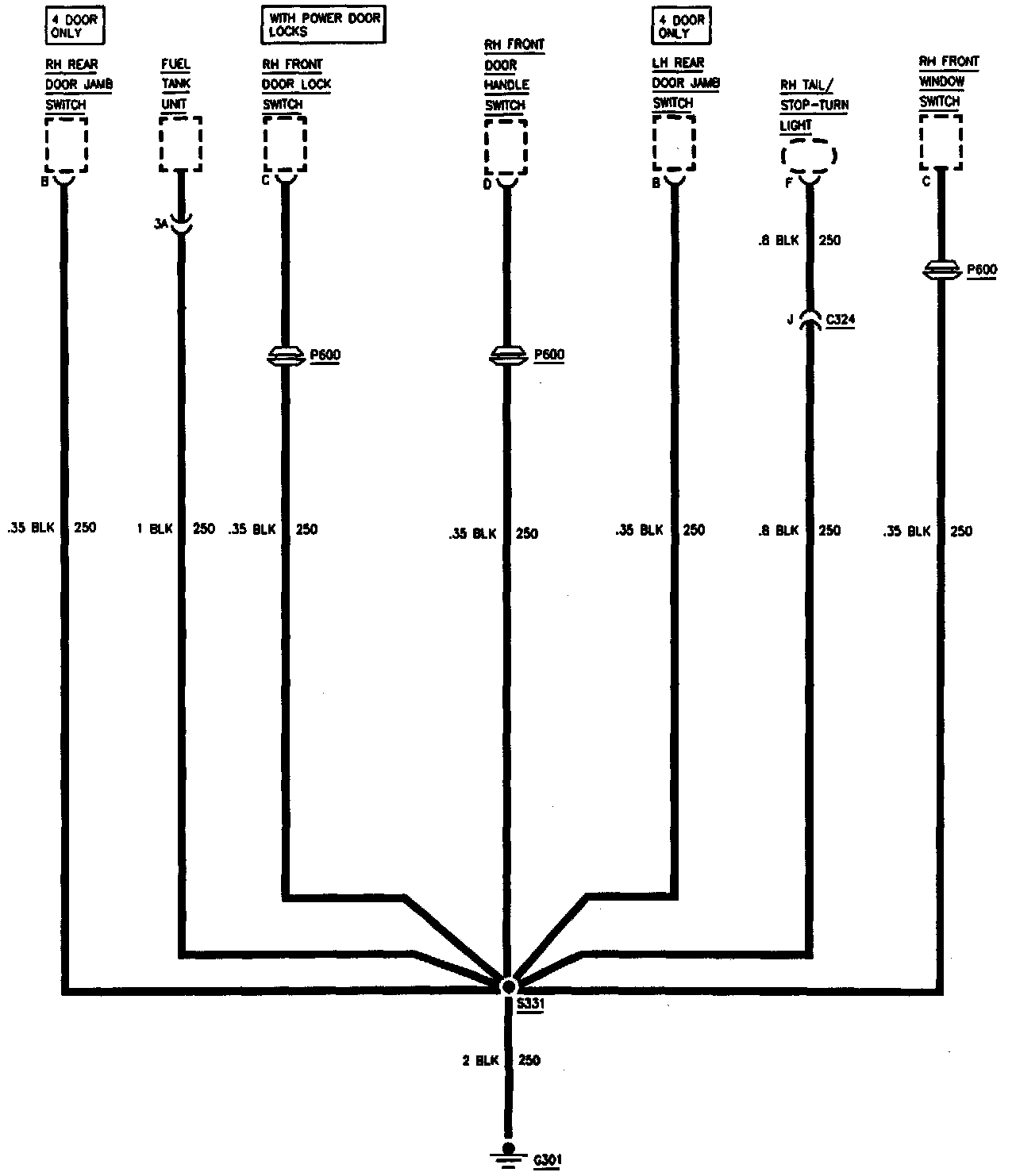

G301

G301:
