Home
>>
Oldsmobile
>>
1996
>>
Achieva V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G111
G111

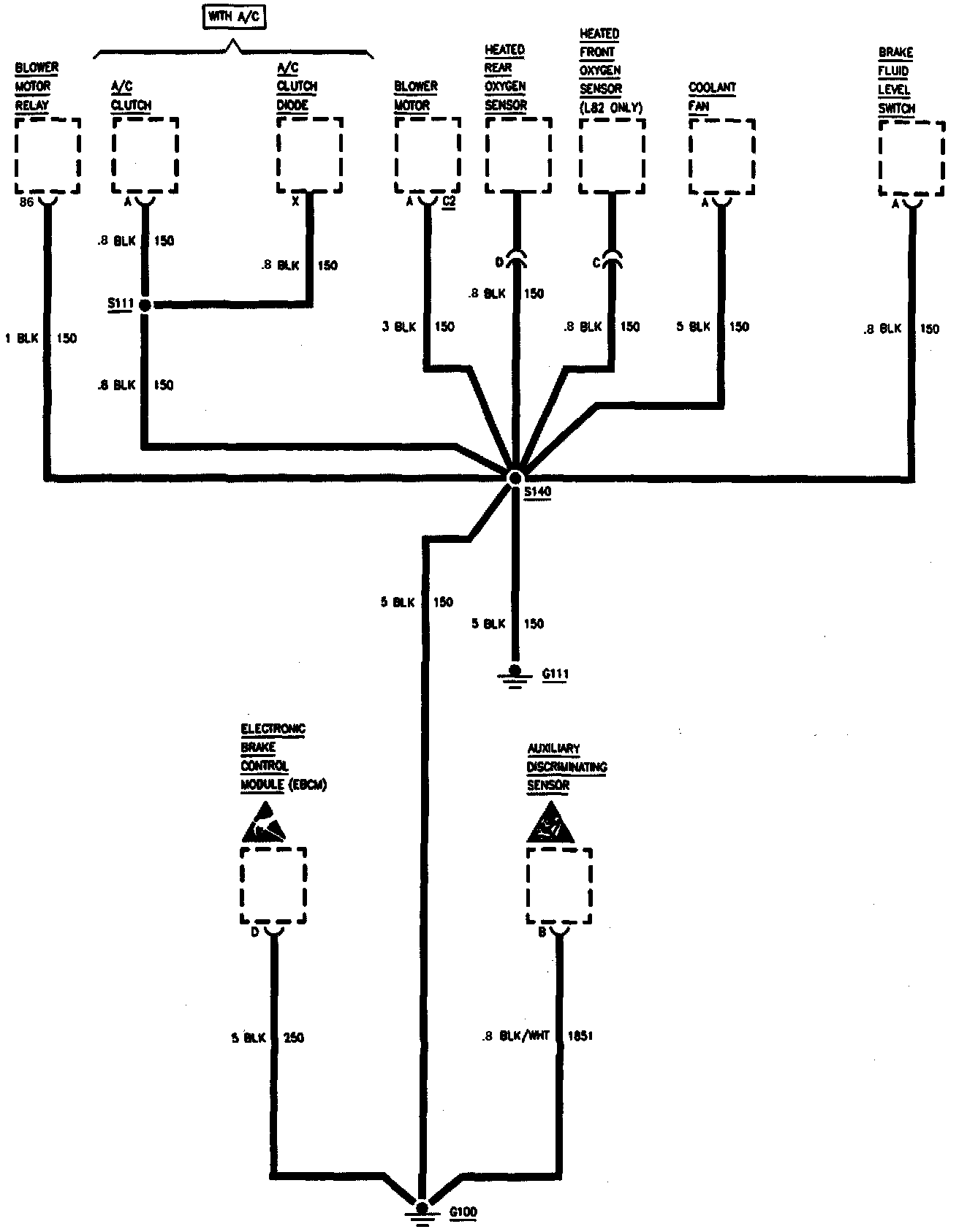

G100 And G111:
