Home >> Oldsmobile >> 1995 >> Eighty-Eight Royale FWD V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> Electronic Shift Control Diagnosis >> Without Transaxle Test Box >> 95 ATW, CTW, YLW, YRW

95 ATW, CTW, YLW, YRW




Transaxle Check

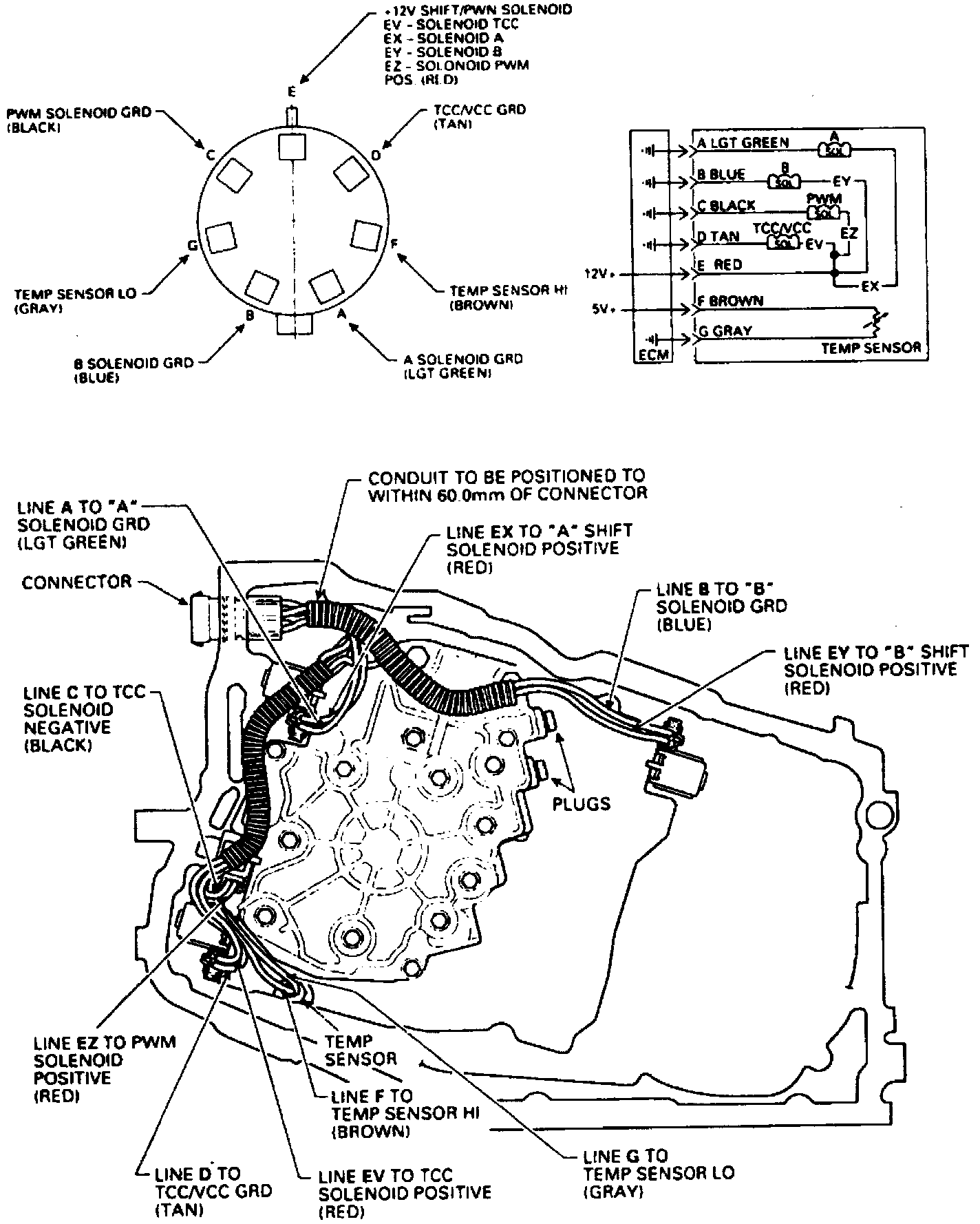

Wiring Diagram




Wiring Harness
