Home >> Oldsmobile >> 1995 >> Eighty-Eight Royale FWD V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> Electronic Shift Control Diagnosis >> With Transaxle Test Box >> 93 Except CMW

93 Except CMW

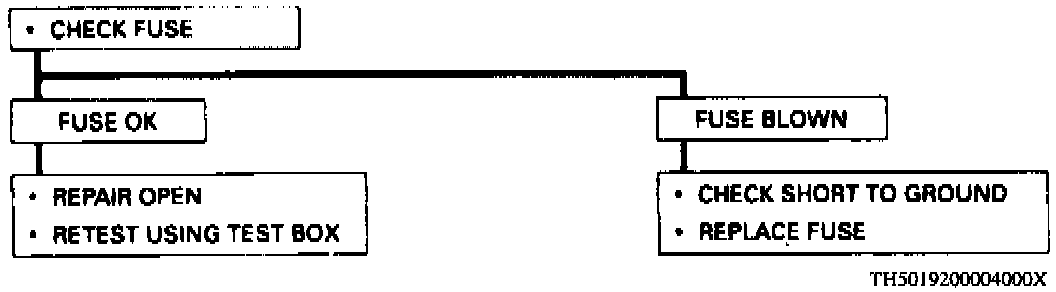

Diagnostic Charts

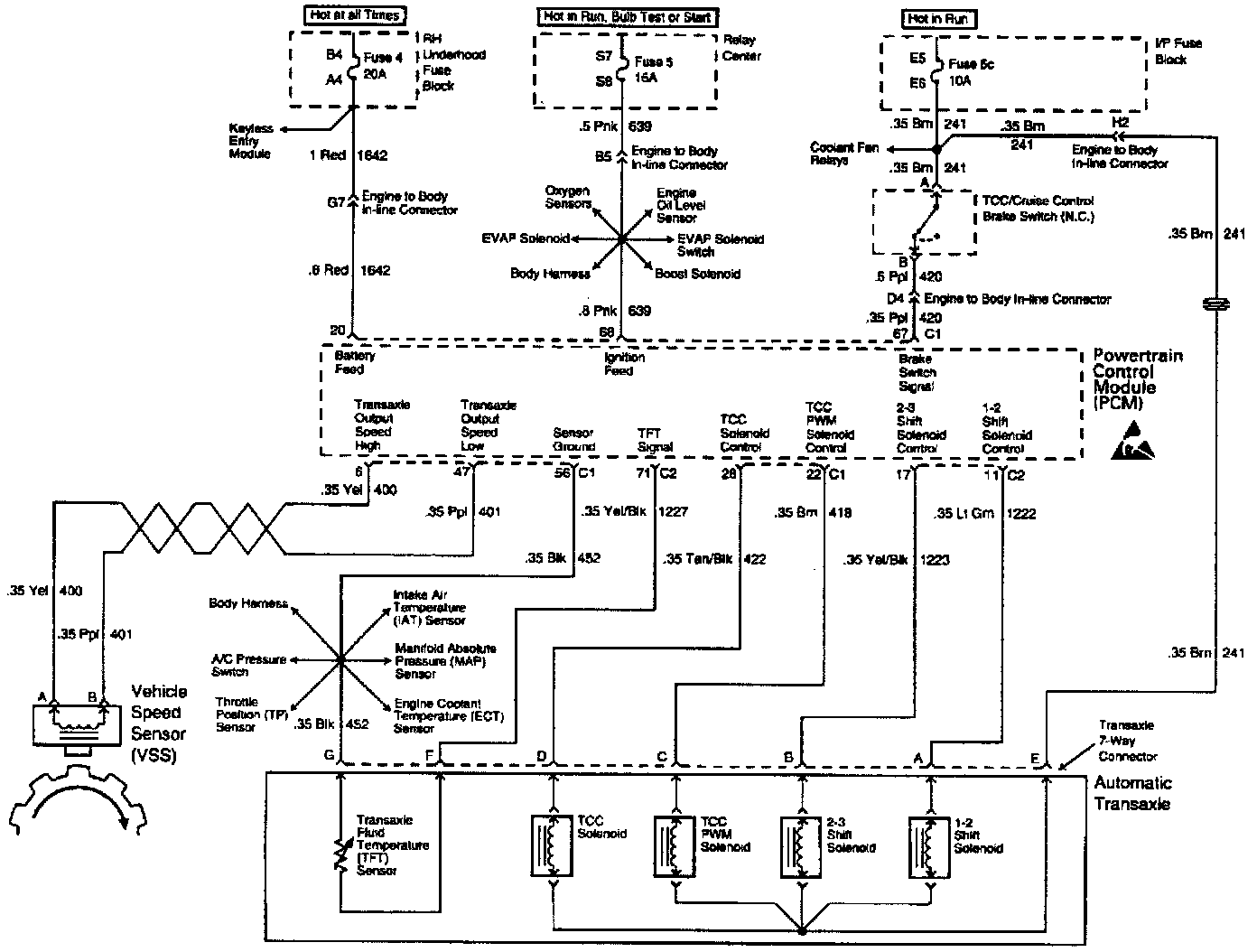

Wiring Diagram

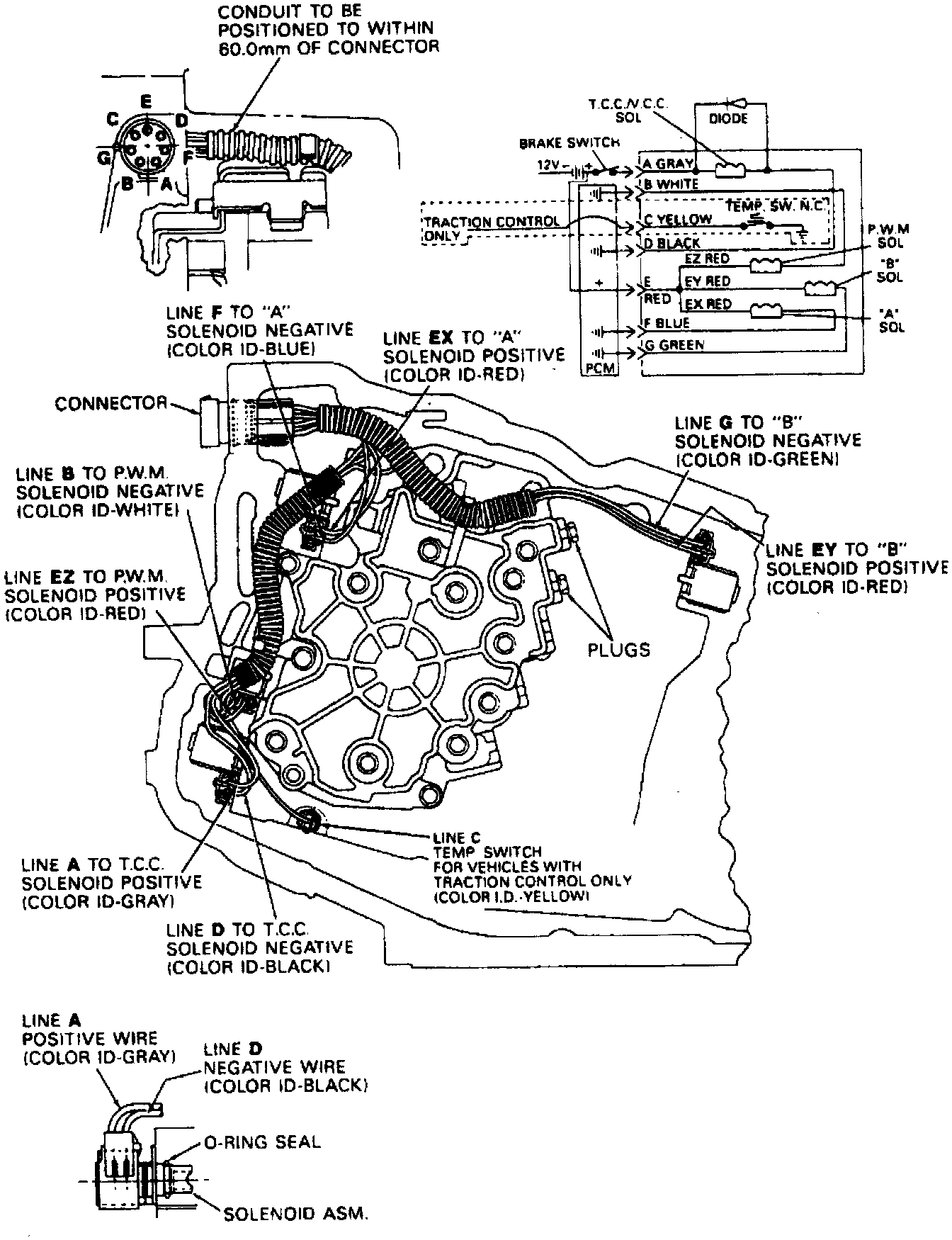

Wiring Harness
