Variable Assist Steering Actuator

Power Steering Pump Assembly - CB Series:

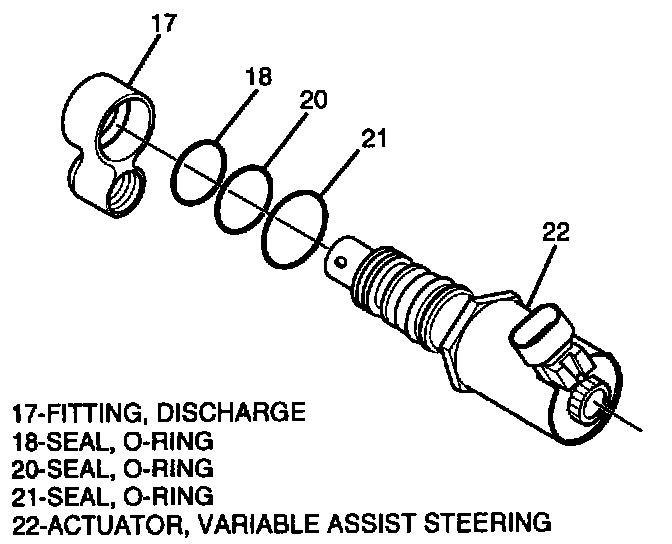

Variable Assist Steering Actuator Assembly:

This vehicle may he equipped with a Variable Assist Steering hydraulic control system. If the power steering pump has Variable Assist Steering, service as follows.

Remove or Disconnect

1. Negative (-) battery cable.
2. Pump assembly from vehicle, if necessary for access.
3. Power steering pressure line.
4. Electrical connector from Variable Assist Steering actuator (22).
5. Variable Assist Steering actuator (22) and discharge fitting (17).
^ Discharge fitting from Variable Assist Steering actuator.
^ O-Ring seals (18, 20 and 21) from Variable Assist Steering actuator (22).

Install or Connect

1. O-Ring seals (18, 20, and 21) on Variable Assist Steering actuator.
2. Discharge fitting (17) to Variable Assist Steering actuator (22).
3. Variable Assist Steering actuator and discharge fitting (17) to pump assembly.
4. Position discharge fitting (17).
5. Negative (-) battery cable.

Tighten
^ Variable Assist Steering actuator (22) to 62 N.m (46 lb. ft.).

6. Electrical connector to Variable Assist Steering actuator.
7. Power steering pressure line.
8. Pump assembly to vehicle, if removed.
