Fuel Pressure Regulator: Description and Operation

Fuel Pressure Regulator:

DESCRIPTION

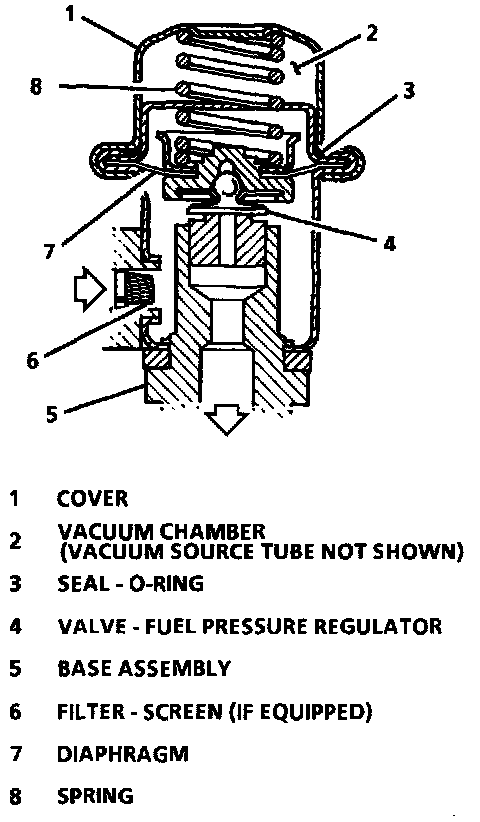

The pressure regulator is a diaphragm operated relief valve with fuel pump pressure on one side and manifold pressure on the other. The function of the regulator is to maintain the fuel pressure available to the injector at three times barometric pressure adjusted for engine load.
