Canister Purge Solenoid: Service and Repair

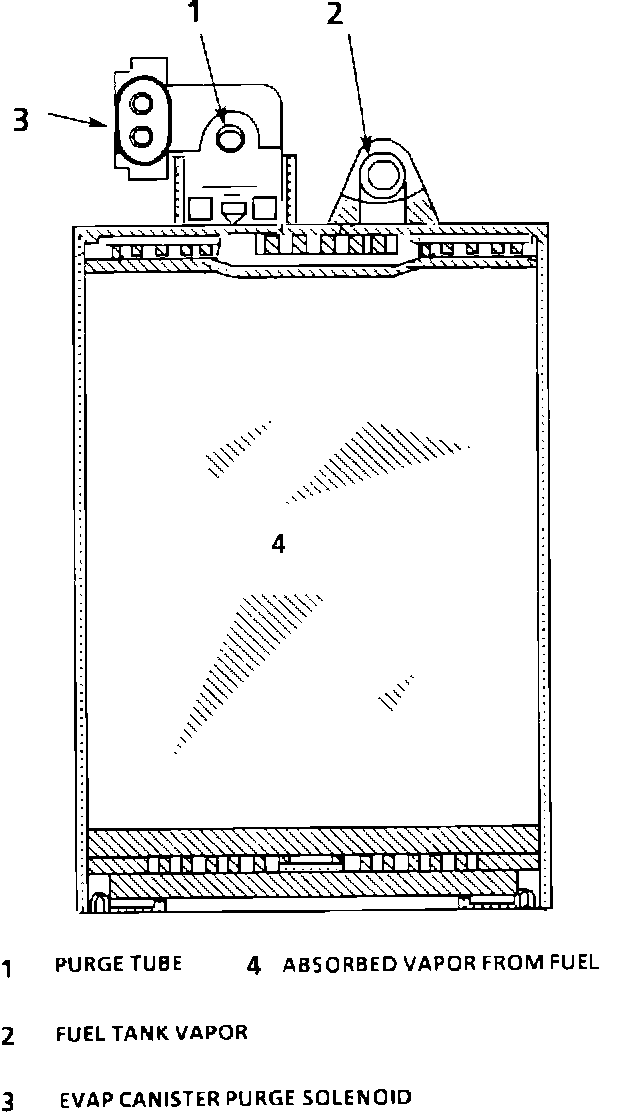

Vapor Canister:

REMOVE OR DISCONNECT
1. Remove fuel vapor canister.
2. Electrical connector and hoses from solenoid.
3. Canister purge valve from canister.

INSTALL OR CONNECT
1. Canister purge valve.
2. Hoses and electrical connector on solenoid.
3. Install canister.
