Curiosii for ever!: Car repair manuals for everyone.

Home >> Oldsmobile >> 1995 >> Eighty-Eight Royale FWD V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Part 2

Part 2

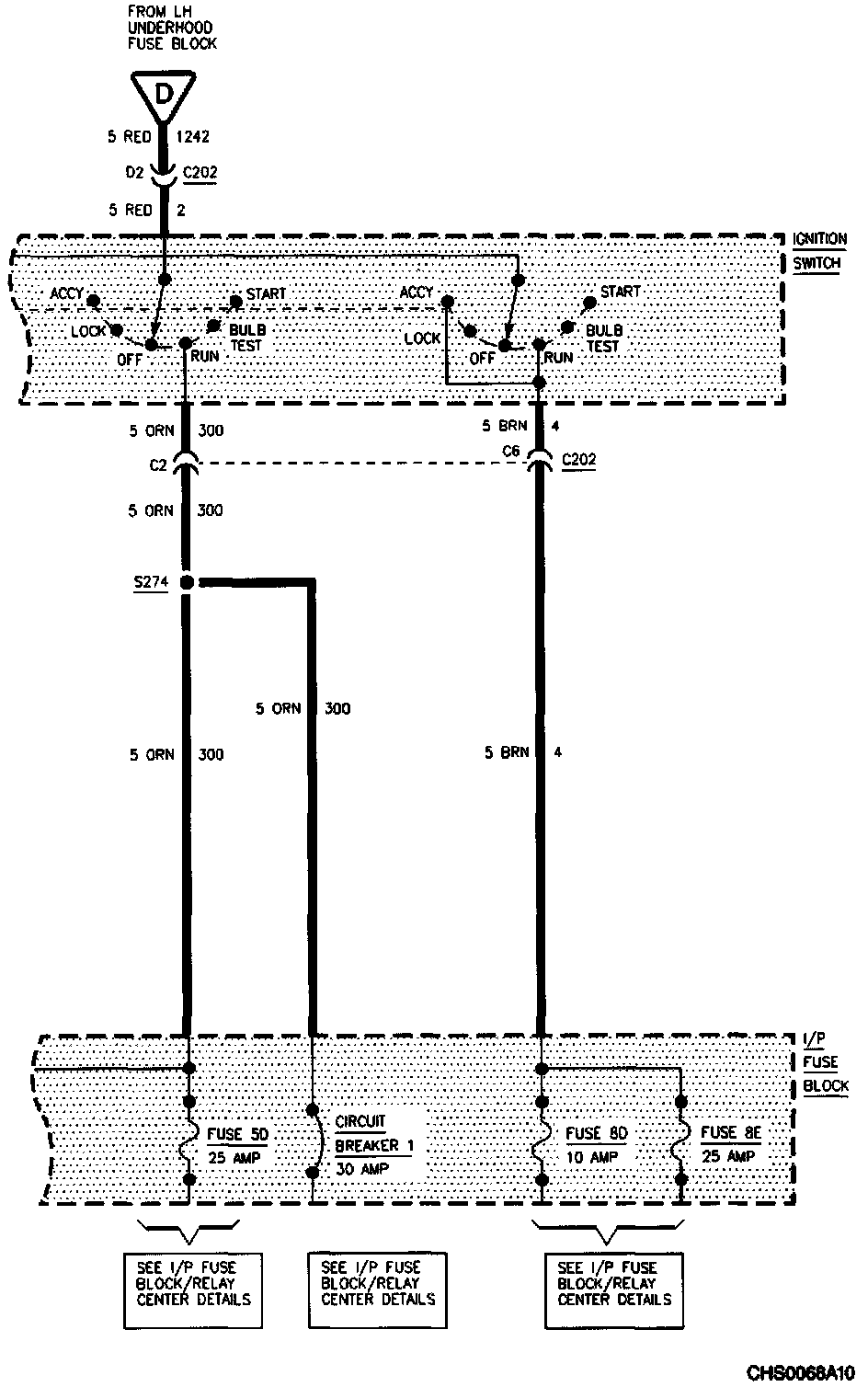

Without Retained Accessory Power (KP2):
