Home
>>
Oldsmobile
>>
1995
>>
Eighty-Eight Royale FWD V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Fuses
>>
I/P Fuse Block/Relay Center Fuses
>>

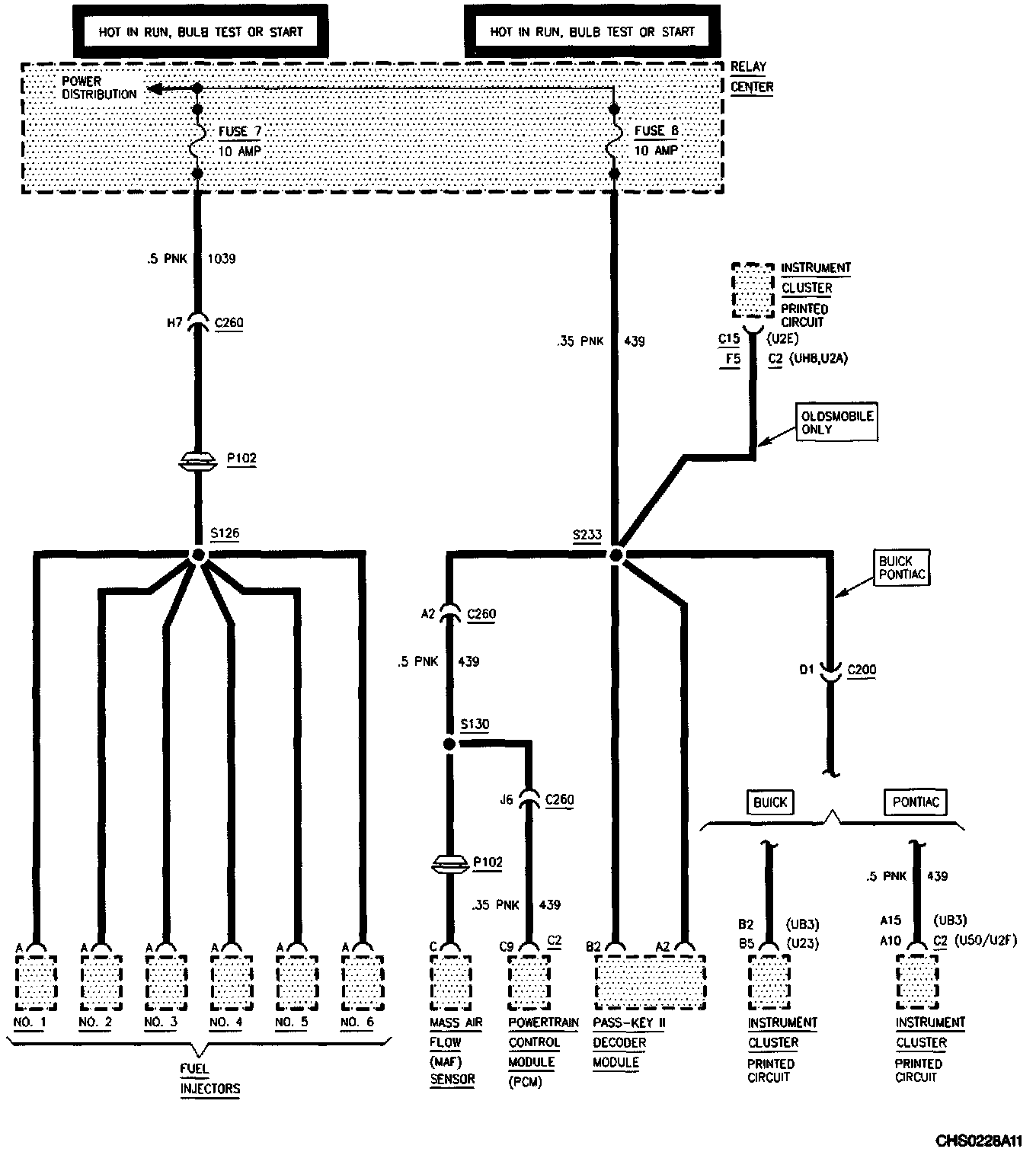

Relay Center Fuses 7 and 8
Relay Center Fuses 7 and 8
Relay Center Fuses 7 And 8:
