Oldsmobile
>>
1995
>>
Eighty-Eight Royale FWD V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G402
G402

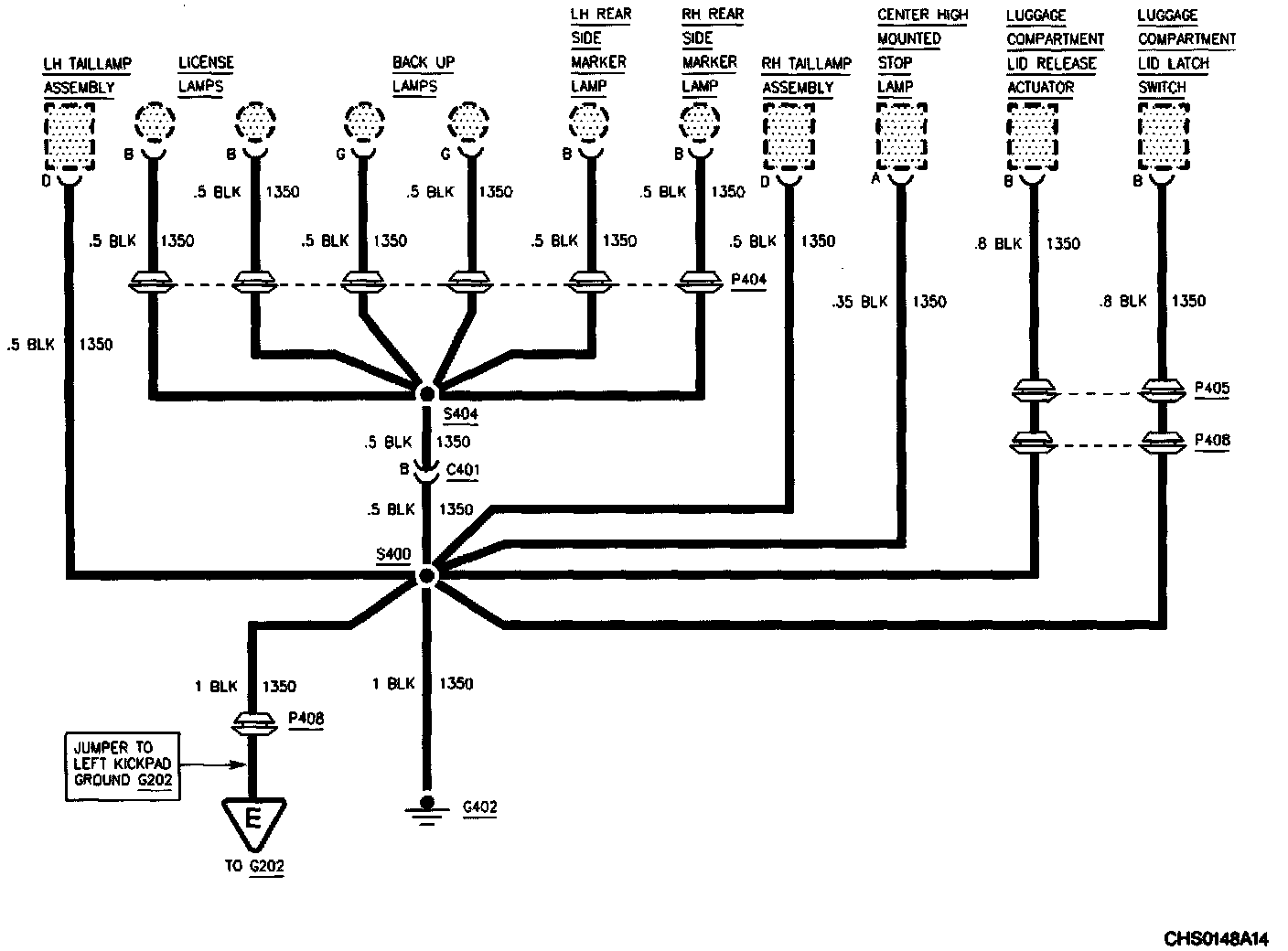

G402: Rear Ground:
