Vacuum Hose Routing
Vacuum Hose Routing

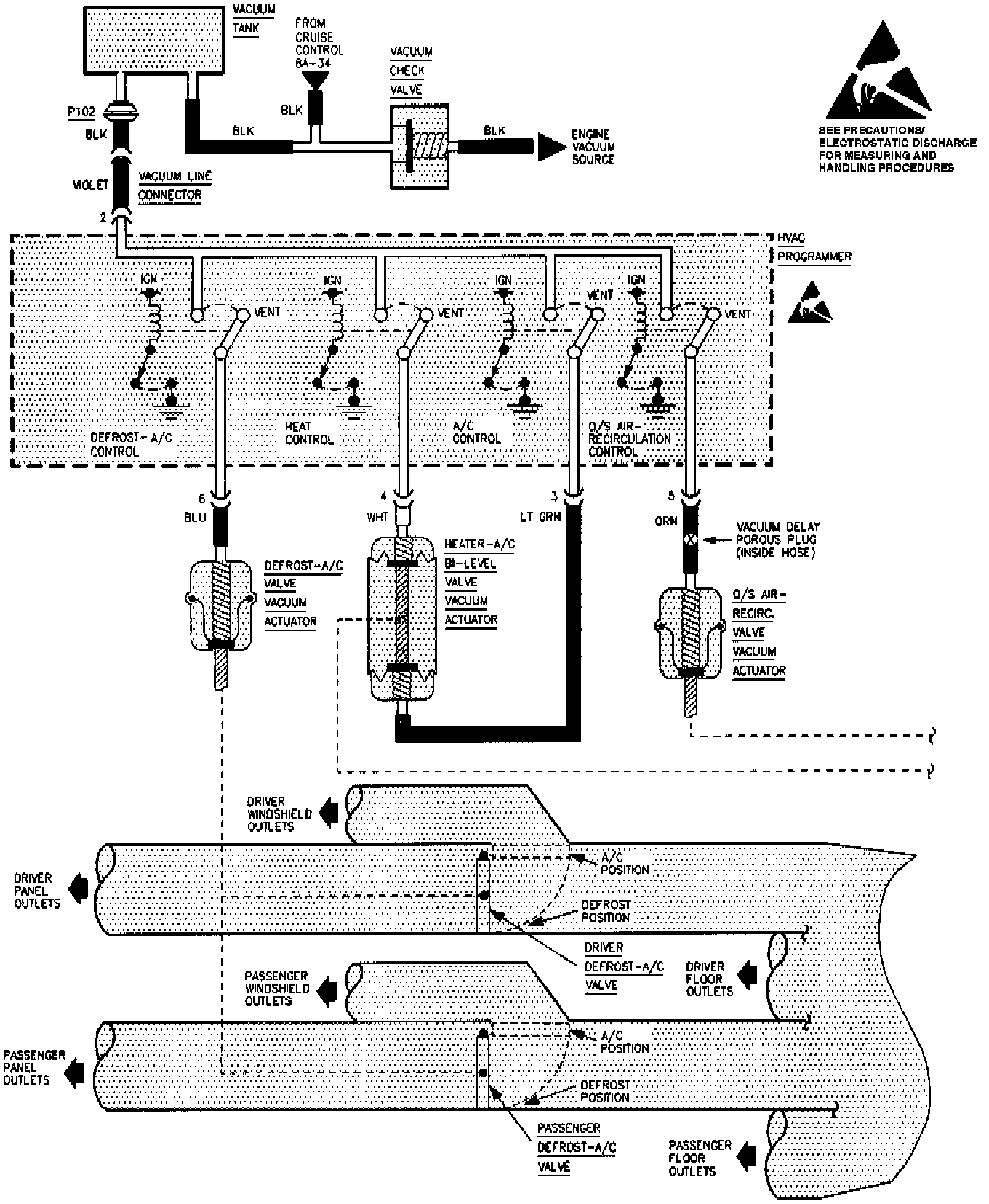

Dual Zone ECC Air Flow/Programmer Diagram (Part 1):

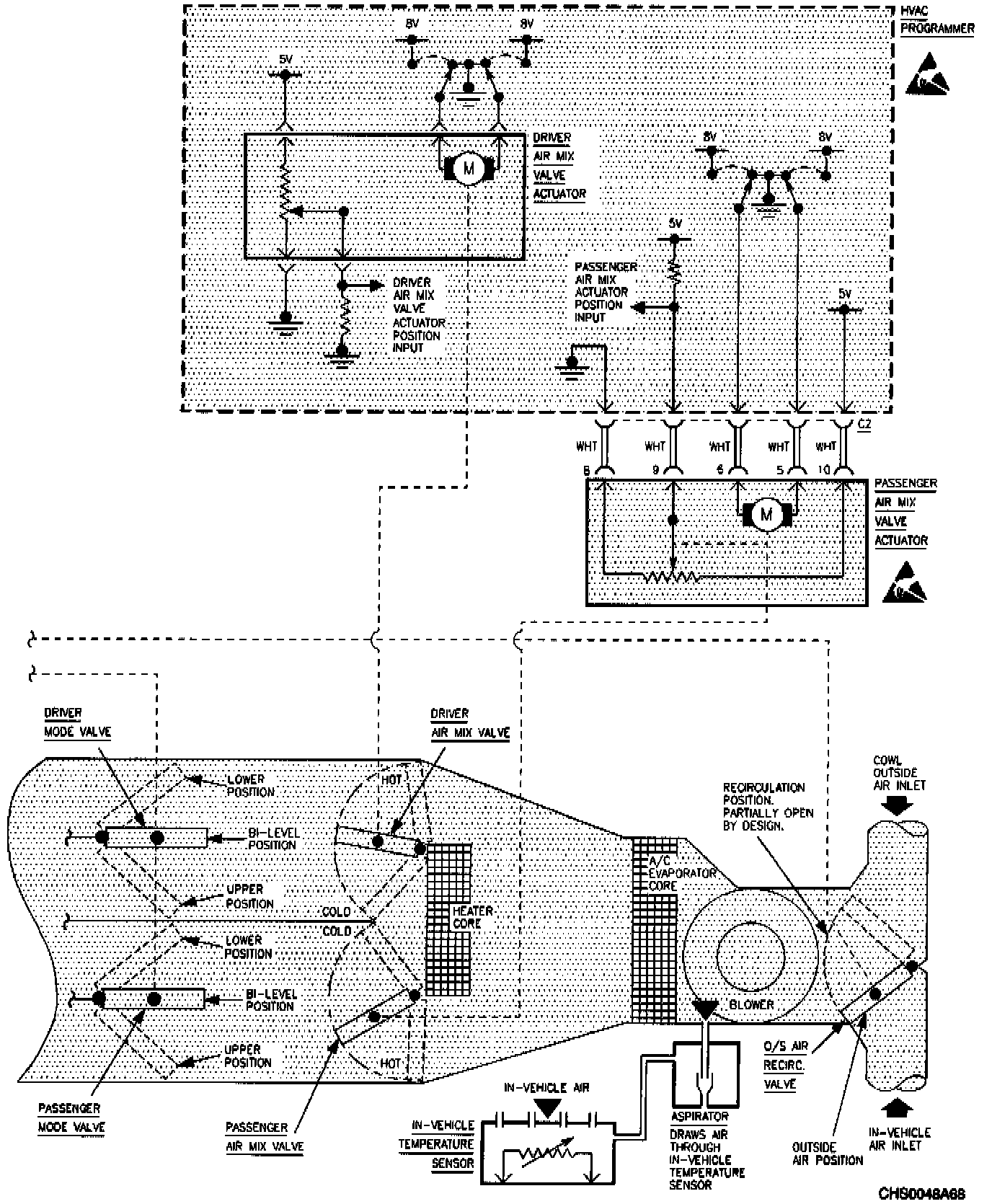

Dual Zone ECC Air Flow/Programmer Diagram (Part 2):
