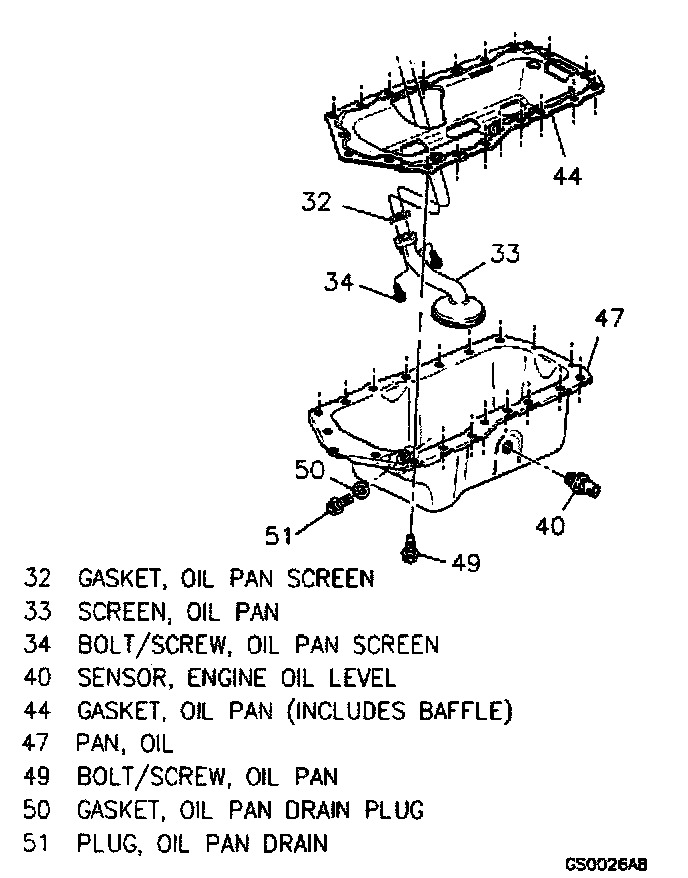

Oil Pan: Service and Repair

Remove or Disconnect






1. Oil level sensor connector.
2. Oil pan retaining bolts.
3. Oil pan.
4. Old oil pan gasket and discard.

^ The formed rubber oil pan gasket cannot be reused.

Clean

^ Oil pan and cylinder block mating surfaces.

Install or Connect

1. New formed rubber oil pan gasket to oil pan flange.
2. Oil pan.

Tighten

^ Bolts to 14 N.m (124 lb. in.).
^ Do not over tighten bolts or damage to the oil pan will occur, resulting in an oil leak.

3. Oil level sensor connector.
